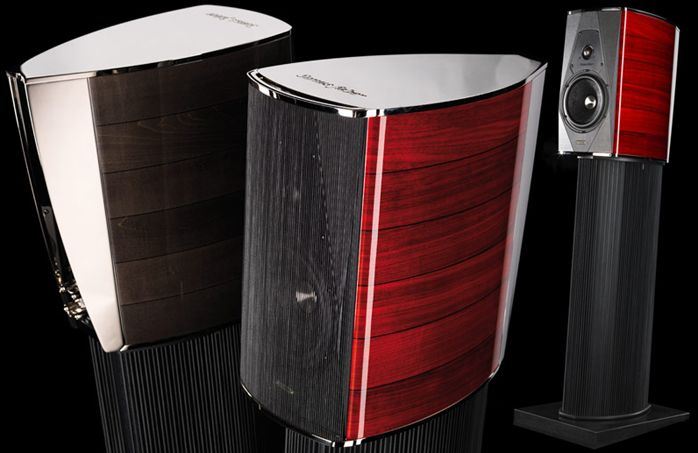

Guarneri evolution



SYSTEM: 2 way, low spurious vibration optimized suspension, stealth reflex para-aperiodic loading, compact monitor on a dedicated stand loudspeaker system.

CABINET; Lute shape design, multilayer, constrained-mode damping, enclosure formed using hand selected wood layers, quality graded and oriented for carefully optimized resonances control. Sub-structural ribs are strategically placed for absolute rejection of spurious vibrations. ‘New Era’ avional (from the experience) exo- squeleton clamp structure with The Tuned Mass Damper inhibiting the residual resonances of the wooden structure.

TWEETER:
29 mm ultra dynamic linearity classic Ragnar Lian moving coil driver, Sonus faber vibration optimized mechanical interface.

MIDRANGE/WOOFER: 179 mm, ultra dynamic linearity driver. CCAW/Kapton eddy current free voice coil. Dynamically linear magnetic field motor incorporating triple Kellog/ Goeller rings. Real time air dried and non pressed cellulose fiber cone. Designed synergistically with its optimized acoustic chamber. A special coaxial anti-compressor are used, designed to remove cavity resonance and distortions.

CROSS-OVER: Non-resonant progressive slope design, optimized amplitude/phase response for optimal space/time performance. Paracross topology on the tweeter hi-pass. The response at low frequencies is controlled for a clear amplifier friendly performance. Highest quality is used in terms of the components: Mundorf Supreme capacitors, Jantzen inductors. Cross-over: 2800Hz.

FREQUENCY RESPONSE: 40 Hz – 30.000 Hz, Stealth reflex included.

SENSITIVITY: 86 db SPL (2.83V/1 m).

NOMINAL IMPEDENCE: 4 ohm.

POWER HANDLING: 25W – 200W, without clipping.

AVAILABLE FINISHES: Red, Graphite, Wallnut.

DIMENSIONS: 410 x 235 x 412 mm (HxWxD).

WEIGHT:
37 Kg per pair – net weight
43.5 Kg per pair – shipping weight.
EVOLUTION STAND DIMENSIONS: 795 x 320 x 423 mm (HxWxD)
WEIGHT: 72 Kg per pair – net weight
86 Kg per pair – shipping weight
TOTAL DIMENSIONS: 1205 x 320 x 510 mm (HxWxD Including Guarneri Evolution).
