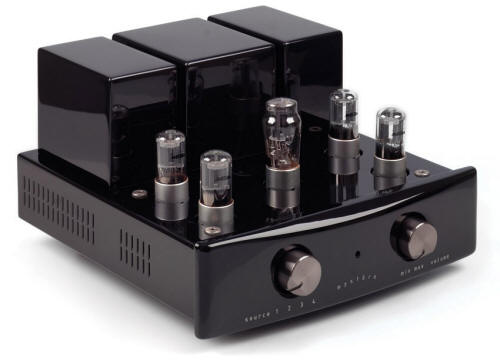

ca11




Specifications

Frequency response: 8Hz ... 200kHz @ 47K load

Noise: 104dB wtd-a ref 1V

Gain: 9x = 19dB

Distortion: 0,05% @ 100mV output
0,12% @ 1V output

Weight: 15 kg

Dimensions: 320x370x200mm (lxwxh)

Input impedance: 150kOhm

Output impedance: 592 Ohm

Maximum headroom: 25dB rel to 1V output = 19V

Crosstalk: -94dB 20Hz - 20kHz
