Nimis




 The aim of Synthesis was to construct a system that would recreate for the customer the most realistic sonic reproduction. It is in this reproduction that music is loved, be it rock or classical, blues or jazz. This ability follows for either Audio or for Home Cinema. We want to create a reproduction that is more realistic than just a recording, but to capture the essence of the musical event, and the emotional pleasure that it implies.

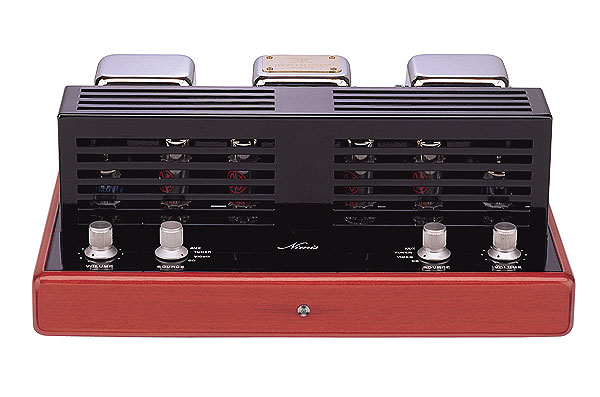

Conceived, designed and built by Synthesis, Nimis is able of 15W integrated tube amplifier concept developed for everyone with a passion for listening and living with the ultimate in audio and video entertainment.

Technical specifications:

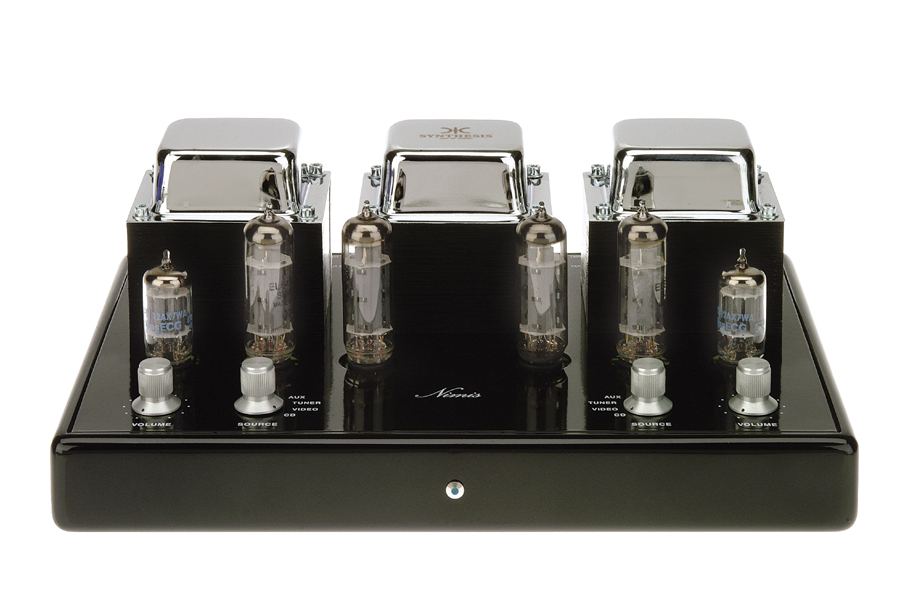

Power stage (1ch): 2 x 6BQ5-EL84
Driver (1ch): ½ 12AX7-ECC83
Input stage (1ch): ½ 12AX7-ECC83
Power output: 15W RMS/8 ohm
Frequency response: 20Hz to 20KHz +-1dB
Signal/Noise ratio: >90dB, A weighted

Controls:
Front: Input switch selector, volume.
Rear: On-Off switch, male power sck, RCA gold plated connectors, binding posts, protection fuse.
Inputs: 4 Input line level, Cd player, Tuner, Video, AUX.
Outputs: Tape out
Power consumption: 110W Max
Finish: Ecologically sensitive lacquer
Dimensions: (w,d,h) 320x220x120mm
Weight: 10.0 Kg
