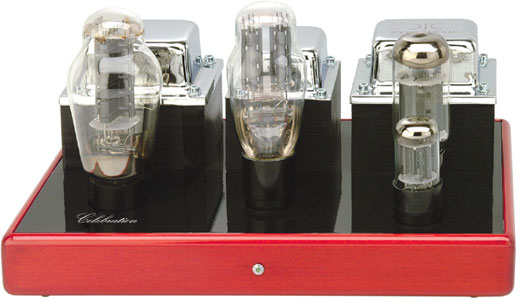

Celebration



The legendary 300B power triode has long been the first choice of many serious music listeners because of the natural, emotional presentation of amplifiers using this power tube. Our design is carefully tailored to furnish ideal drive conditions for the output tube, opening the door to dramatic new levels of low-end articulation and dynamic excitement for single-ended 300B amplifiers. The Celebration provides full-bodied musical reproduction that you will appreciate for a long, long time. The result of our intensive research, the Celebration, is a completely modern amplifier dedicated to the timeless quest for musical enjoyment.

The Celebration is able of 10 watts in pure A class in single-ended configuration built around a 6SN7 on input stage and EL34 as driver. The power supply uses 5U4G tube rectifier circuit followed by a massive pi network using the highest quality caps and custom made choke. The Output transformer uses a double Hi-Grade Iron-Silicon for superb frequency reproduction and bandwidth. With this newly designed custom output transformer we are able to achieving highly delicate and precise sound reproduction faithful to the original recording.

Technical specifications
Power stage: 300B
Driver: EL34-6CA7
Input stage: 6SN7
Rectifier: 5U4G
Input impedance: 1Mohm
Configuration: Single-Ended Pure A class
Sensitivity: 1V RMS for max power
Frequency response: 20Hz to 20Khz -0.5dB
Power output: 10W RMS/6 ohm A-Class
Signal/Noise ratio: >90dB, A weighted

Controls
Front: Led.
Rear: Male power sck, protection fuse, On-Off switch, RCA input gold plated connectors, binding posts.
Power consumption: 130W Max
Finish: Ecologically sensitive lacquer
Dimensions: (w,d,h) 320x220x180mm
Weight: 12.0 Kg
