Matrix

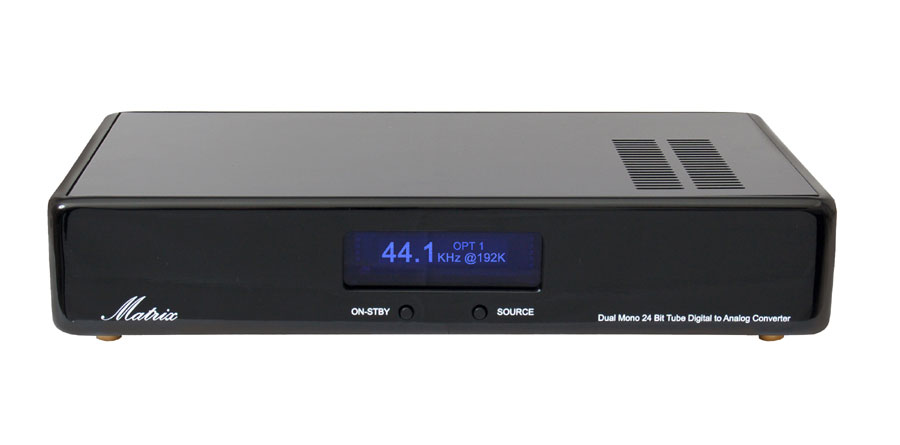

The Matrix is designed completely in house by Synthesis to represent a new level in audio realism. It represents three years of meticulous work from drawing board to finished item.
Why have we taken so long? Because we didn’t want to create a DAC that boasted the worlds most impressive features, or heralded a new level in stereo detail, we didn’t even want it to look like it just landed from Saturn with swages of aluminium and more lights than an oil rig at night.
What we wanted, was to get back to the very basics of music itself.
We wanted it to sound like the performance was there as your intimate companion, to capture its very sole and transport it to you, so that you too could live the music.

Technical specifications
Compatible format: PCM Stereo 32-192KHz
Input: 2 x S/PDIF gold plated RCA
2 x Optical Toslink
1 x USB (PC-Mac)
Upsampling: 192KHz / 24Bit
D/A converter Dual Mono 2 x Wolfson WM8740
24Bit DAC
Output stage: Philbrick Op-Amp K2-W model
4 x 12AX7/ECC83
Frequency response: 20Hz to 20KHz +-0.5dB
Analogue Output: 3V RMS
Signal/Noise ratio: >95dB, A weighted

Controls
Front: Display, stby, source.
Rear: On-Off switch, male power sck, protection fuse, RCA gold plated connectors, USB connector, Toslink connectors.
Power consumption: 40W Max
Stby consumption: 4W Max
Finish: Ecologically sensitive lacquer
Dimensions: (w,d,h) 320x220x60mm
Weight: 5.0 Kg
