Heritage A100

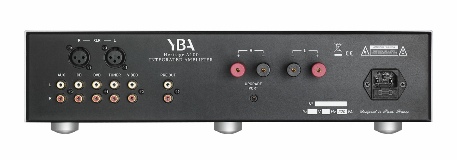

With 5 RCA inputs - plus 1 balanced, this superb and extremely well reviewed integrated amplifier has a bypass feature on the video input. This means that the preamplifier section can be bypassed if for example you choose to connect a home theatre processor.
In addition it also has a pre-out feature allowing for the connection of an active subwoofer, a separate power amplifier or perhaps a pair of powered speakers.

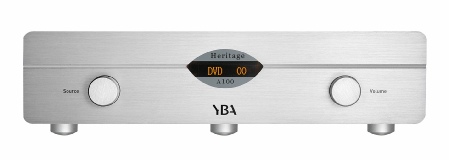

With its distinctive uncluttered looks the on/off switch is located on the left hand underside of the amplifier and as with all YBA products, the display brightness can be adjusted from the remote control.
With an unusual volume level readout we would also encourage you to read the article on Understanding 0dB - also available in the download area.

Output power: Stereo 100W/8Ω 150W/4Ω

Line inputs: 5 RCA

XLR input: 1 XLR

Line output: 1 Pair RCA

SNR: -95 dB

THD&N (20 Hz - 20 kHz): 0.04%

Frequency response: 20 Hz - 20 kHz (-0.5dB)

Power supply: Linear power supply with high performance transformer 320 VA

Remote control: Full function remote control

Finish: Natural aluminium

Dimension: 430 mm x 400 mm x 118 mm w x d x h

Weight: 9.3 kg
