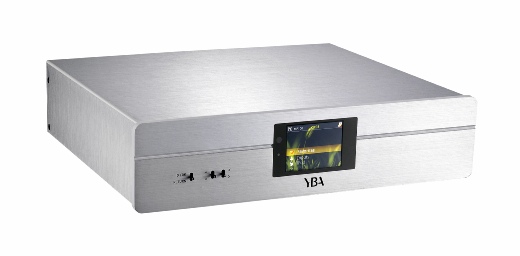

Heritage MP100B


Streaming has become one of the most popular innovations in recent years. Undeniably a product of the times, YBA’s Heritage Media Streamer has one of the most attractive displays we have seen.

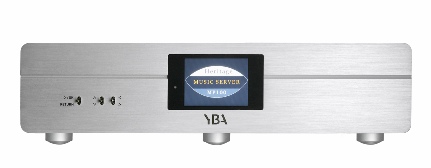

The TFT LCD display measures a healthy 320 x 244 mm and provides the ability to select a preferred background theme from a choice of 4. Setting up is simple and takes no more than a few minutes. There is a choice of languages and the clock setting caters for daylight saving where required.
When accessing iPod, if you have album artwork on the your iPod/iPhone, this artwork will be displayed.
Once a network is selected, it provides the ability to listen to Internet radio and stream music via either a wired or wireless option. If an Ethernet connection is available it would always be recommended to use this as wireless networks can sometimes have dropouts. With this in mind we have produced an information sheet which we would encourage you to read. It can be accessed via the Download area.
The MP100 has an abundance of features and can become the centre of your entertainment system in no time at all. In November 2013 we added Bluetooth making access to your music even easier.
It is a joy to own and with its simplicity of operation, it will confuse no-one.

Supported formats: AIFF, WAV(LPCM), FLAC, MP3, WMA, AAC (local file); MP3, WMA (Internet radio)

Support sampling rates: 32 - 192 kHz
Support resolution: 16bit, 20 bit, 24bit

Ethernet: 10/100Base-T (RJ45)
Wi-Fi: IEEE 802.11 b/g
WPS: Compatible
DLNA: 1.0/1.5 compatible
Internet radio services: V Tuner

Bluetooth: Bluetooth 4 aptX

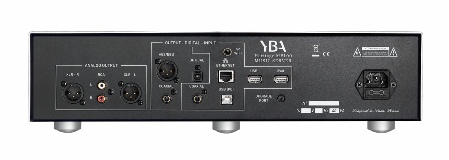

Audio outputs: Gold plated RCA and XLR
Digital outputs: Coaxial (0.5V p-p @ 75 Ohm), Optical
Digital inputs: AES/EBU (2V p-p @ 110 Ohm) Coaxial, USB (PC), USB (Host), iPod

Unbalanced output level: 2V
Balanced output level: 4V
SNR RCA: 108 dB
SNR XLR: 113 dB
Frequency response: 20 Hz - 20 kHz (-0.5 dB)
THD+N: 0.001%
D/A Converter: Wolfson WM8740 (24 bits / 192 kHz capable)
Power supply: Linear power supply with high performance R-core transformer

Remote: Full function remote control
Finish: Natural aluminium
Dimension: 430 mm x 374 mm x 118 mm w x d x h
Weight: 5.2 kg
