Signature preamplifier


For the most uncompromising audiophiles, the Signature range stands proud as the pinnacle of research undertaken by YBA over many years. There are no compromises in the design, development and manufacture of Signature products.

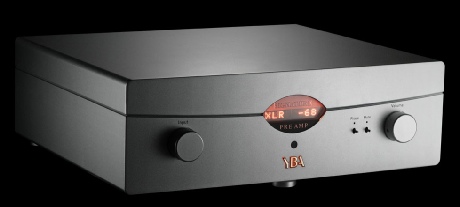

Catering for both analog and digital requirements the Signature pre amplifier offers a choice of inputs includes 5 x RCA and 1 balanced together with three digital - USB, Optical and Coaxial. It features RCA and balanced outputs. This is a truly versatile preamplifier, and features two YBA ‘signature’ control buttons on the front panel for mute and phase. Engaging the phase control generates a 180° phase shift between the input and output signals. The remaining two front panel controls are for source selection and volume.
The pre amplifier comes complete with a fully functional custom designed remote,manufactured to the highest standards.

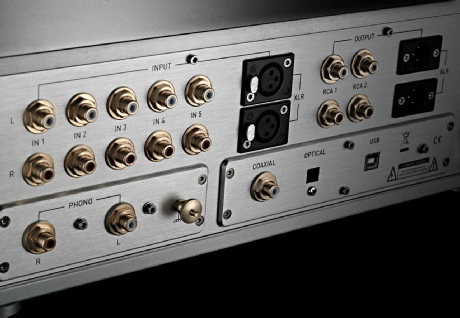

Inputs: 3 digital (USB, Optical, Coaxial), 5 RCA analog, 1 phono, 1 balanced analog

Audio outputs: 2 RCA outputs 1 balanced output

Gain: +6 dB

Sampling rate: Input signal 32, 44.1, 48, 88.2, 96, 176.4, 192kHz/24 Bits

SNR: >105 dB

Frequency response: 20 Hz - 20 kHz (-0.5 dB)

THD+N (20 Hz - 20 kHz): <0.003%

Power supply: Linear power supply with high performance transformer 190 VA

Capacitors: 112,800uF Analog power capacitors

Remote: Full function

Dimension: 430mm x 388mm x 151mm (w x d x h)

Weight: 27.5kg
