TECHNICAL SPECIFICATIONS
General specs

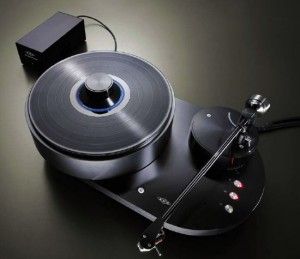

- Type: Unsuspended, belt-driven turntable with integral tonearm, outboard motor controller, and screw-down clamp
- Dimensions: 20 5/8″ x 8″ x 12 7/16″
- Weight: 56.4 lbs.

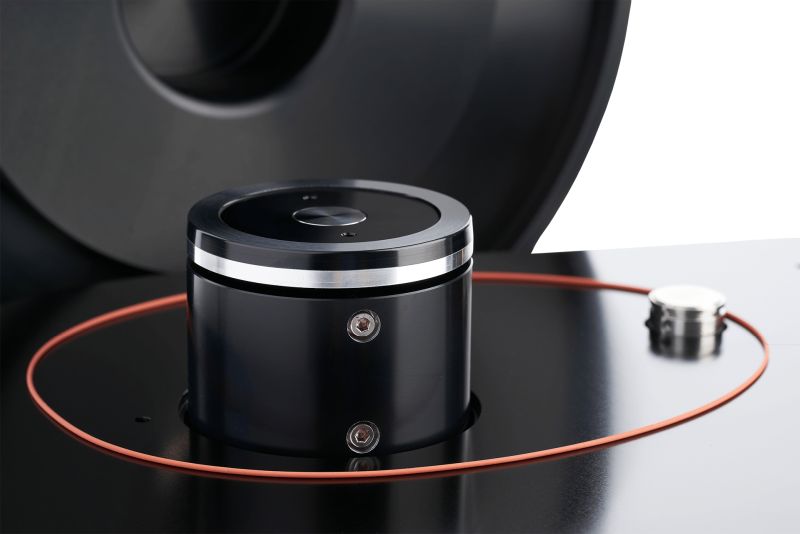

Motor
- Lorenzi 2-pulse, low-speed brushless, precision 24v DC motor with auxiliary reluctance moment
- Sintered bronze bearings
- Cured and polished axis
- Motor housing acoustically decoupled from plinth via 5 rubber/metal mounts

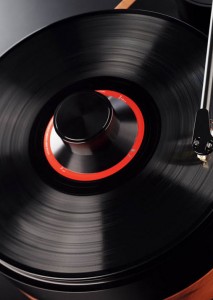

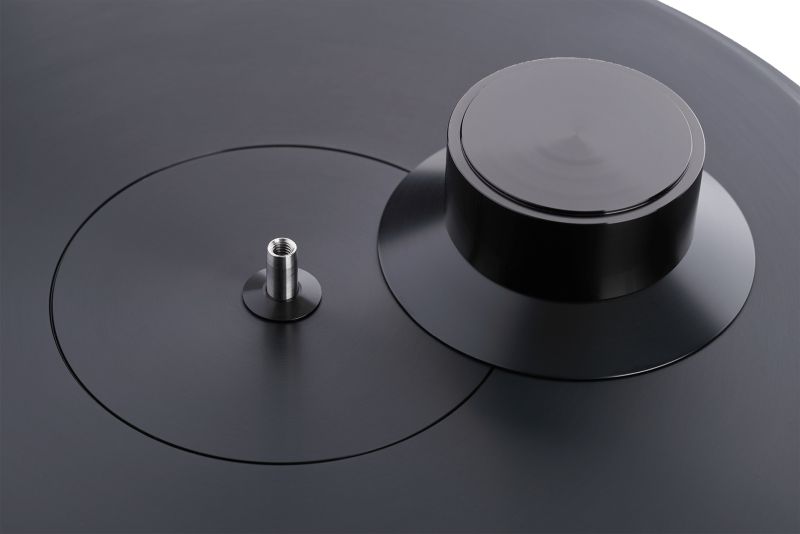

Record clamp
- True reflex style
- Anodized aluminum
- Inverted threaded attachment to decoupled spindle

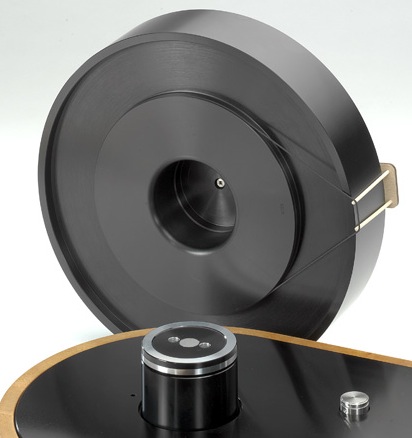

Platter
- Decoupled spindle, 2-piece construction
- CNC machined in house using aircraft grade aluminum
- Weighted rim for enhanced flywheel effect
- 12.5″ (318mm) diameter, 24.25 lbs. (11Kg) weight
Platter bearing
- Hardened 16mm axle bearing, CNC machined ground and lapped
- Two-sealed, hydro-dynamically lubricated radial bearings with axial bearings featuring static lubrication
- Stainless steel sub-platter interfaces with platter

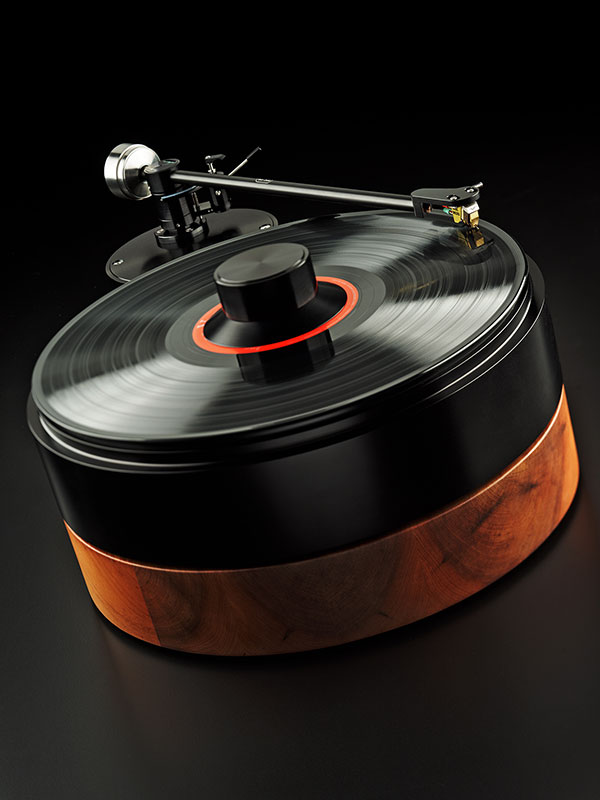

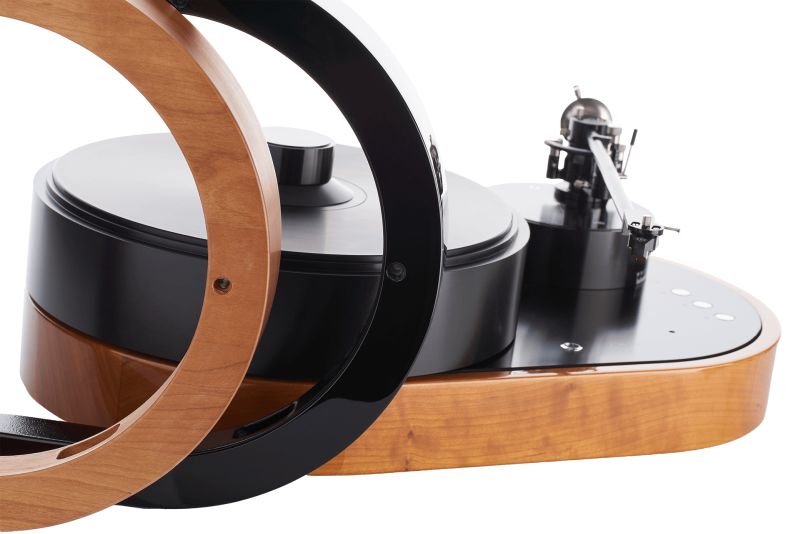

Wood skirt
- American cherry hard wood, hand-built in Germany
- Piano black high-gloss finish, hand-built in Germany
Plinth
- CNC machined in house using 25mm aircraft grade aluminum
- 3 adjustable and retractable steel-copper spikes in aluminum feet
- Built-in spirit level
- Optional hardwood trim

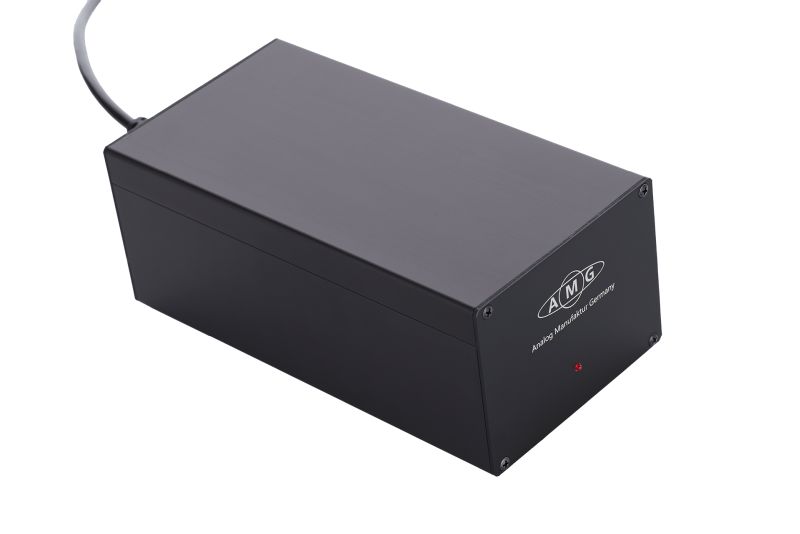

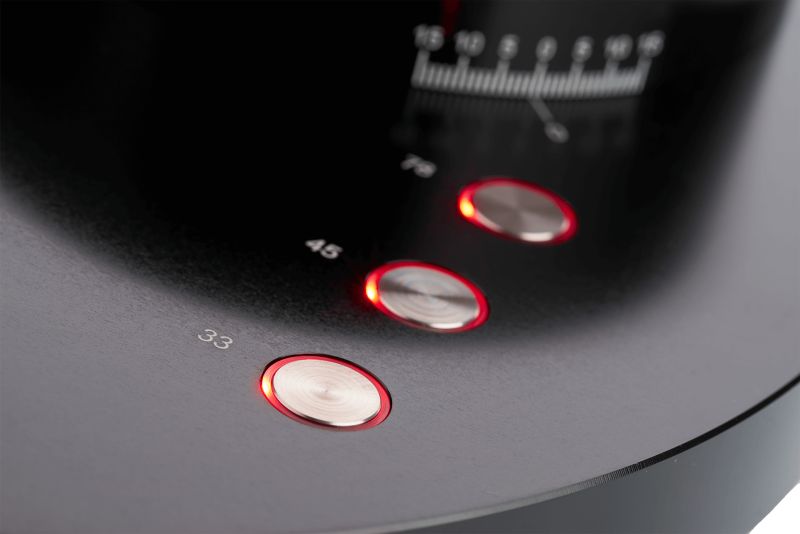

Electronics control
- 33.3, 45, and 78 rpm speeds with electronic on/off
- Backlit capacitive buttons change color with function
- Precision speed adjustment for each speed

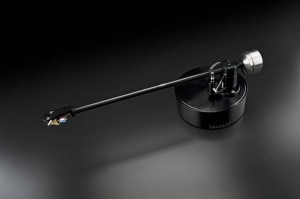

Tonearm
Bearing:
- Dual-pivot design replaces the standard gimbaled bearing
- Vertical bearing, similar to a technique used in the rotor heads of helicopters
- Uses two .5mm thick “spring steel wires,” allowing fine azimuth adjustment while eliminating bearing play
- Horizontal axle is a hardened tool steel, precision ground to a backlash-free git with a needle roller bearing
- It is extremely precise, maintenance free, and never requires adjustment
Armwand:
- Aircraft quality
- Anodized aluminum tube for resonance control
- 12 gram effective mass
Counterweight:
- 2-piece with Teflon decoupled sleeve
Copper Internal Wiring:
- Multiple gauges of high quality copper
Magnetic Anti-skating:
- Decoupled via ring magnet and 2-bar magnets
- Magnetic fields isolated in our patented bearing housing
VTA:
- Precision locking system allowing easy adjustment during play
Armboard:
- Machined solid aluminum
- Bayonet mount with overhang calibration
- Pre-cut for AMG and Graham fixed mount
- Custom cutouts available
