Belladona turntable & Septum arm

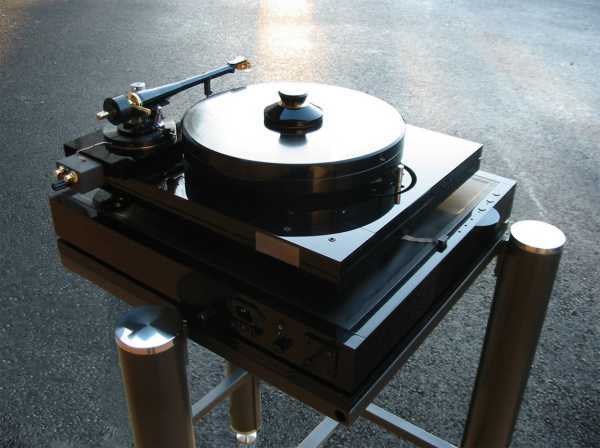

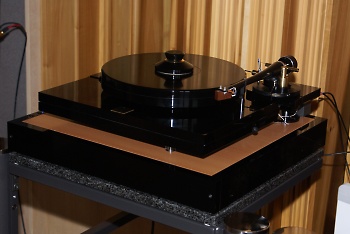

Belladona turntable

  • Stunning with main parts in polished black acrylic with gold detailing.
  • Multilayer, high mass, platter and sub-chassis designed to control "Sound Propagation". No ringing material.
  • Platter weight: 10 kgs - inertia 2 tons
  • Total weight: 54 kgs
  • Dimension: 500 x 460 x 200 mm
  • Easy set up.
  • Levelling adjustable from above.
  • Designed around the Pure Mass Concept - Platter Point of Rotation on the Centre of Gravity. Platter and subchassis C of G articulated on one central spike. Maximum static and dynamic balancing.
  • Inverted bearing
  • Sand-filled Ground Zero plinth
  • Separate and adjustable motor block controls belt tension.
  • Flywheel enhanced motor assembly.
  • Electronically controlled motor power supply.

Ground Base-stand (optional)

  • 3 pods design
  • Dimension: 680 x 550 x 850 mm
  • Height adjustable granit shelves
  • Shelf dimension: 500 x 460 x 35 mm
  • Recommended shelf number: 2 to 3
  • Sand filled shelves
  • Possibility to sand fill pods and frames

Septum pick up arm

  • Stunning in polished gold and black
  • Effective length 230 mm, effective mass 14grms
  • Designed around the Pure Mass Concept, pivot to stylus axis on small axis of ellipsoid of inertia. Maximum static and dynamic balancing.
  • Constant tracking force even on warped records.
  • K.I.S.S. principle throughout
  • Lowest parts count of any high-end pick up arm.
  • Unipivot construction
  • Single-piece headshell and armtube, machined from drawn, solid aluminium bar.
  • Tapered armtube for optimal stiffness and vibration control-internally damped.
  • Hard-coupled counterweight, no "decoupling" losses.
  • Fully adjustable damping.
  • Azimuth adjustment.
  • Micrometrc on-the-fly arm-height optimisation.
  • Removable arm height adjuster, anti-skating device, arm lift and arm rest.
  • Litz internal wiring, separate and shielded connection box.
