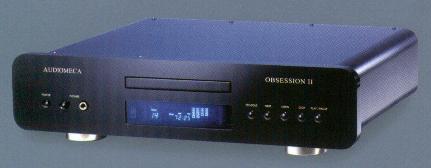

Obsession II



Technical Information

Design: Round Shape

Finish: Black glossy metacrylate and black steel

Weight: 6 kg

Dimensions: 430 mm x 315 mm x 120 mm (W x D x H)
Extremely rigid and damped cabinet

Feet:

2 front feet + 1 rear spike
Central mechanism and drawer
Remote control with all programming facilities

CDM:

High grade three beams laser diode
Fully compatible CD, CD-R, CD-RW
Front display providing full informations

DAC: 24 Bit x 96KHz with balanced current output

Audio stages:

Passive I/V converter + first filter pole

Classe A amplifier

One stage only amplifier

Truly balanced full differential signal proceeding

Frequence Response: 20Hz - 20Khz +/-1dB

Distortion THD: 0.003% (1KHz)

Signal noise ratio:

106 dB
High quality headphone amplifier

Seperated alimentation:

1 supply servo
1 supply for DAC

Connectors:

All golden RCA coax connectors with teflon insulation
Digital output for use as a true CD transport
No pulse transformer
1 coax RCA 75ohms (SPDIF)
1 balanced (AES/EBU) on XLR
1 Toslink

Audio output:

2 coax RCA
2 balanced on XLR

Alimentation: 110/130/230/240V - 50/60Hz
Power Consumption: 14W at 240V
