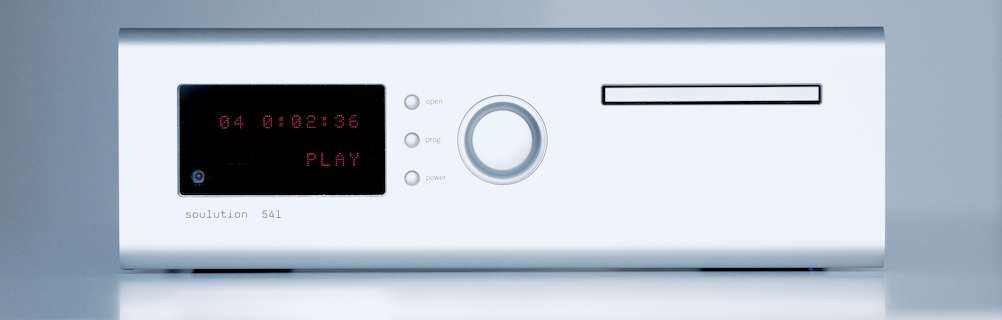

541 SACD




Not even the best amplifier or loud­speaker can compen­sate for what has been lost at the source. That is why the quality of a recor­ding and of the device used for its play­back is so funda­mental to high fidelity.
With the soulution 541 SACD-Player you lose nothing of the original recording. Simply, it reads all the musical infor­mation and trans­fers it into the analogue world.
Purely. Authentically. Perfectly. Beautifully.

Philosophy
In many areas the 541 SACD-Player is based on the same proven technical solutions used in the 745 SACD player. It also embodies the same principles in its design: a superb quality drive for perfect data readout, a super-precise master clock generator to avoid jitter, intelligent digital signal processing with over­sampling technology, and analogue output stages of top end preamplifier quality.

Zero phase technology
The 541 SACD-Player is equipped with soulution's innovative Zero-Phase-Technology. Smallest timing errors provoked by the analog low pass filter of the D/A converter get eliminated. Every D/A-Converter requires an analog low pass filter in its output in order to suppress high frequency noise and aliasing signals. The 541's 3rd order bessel, filter with a cut-off frequency of 120kHz, does show a phase shift of up to 15° in the audio band. Due to the Zero-Phase-Technology the phase error of the analog music signal remains below 1°, 20Hz - 100kHz! The Zero-Phase-Technology brings you even closer to the beauty of the source material! The music gets even more realistic and 3-dimensional with a lot of "air" around instruments and voices. As close to the source as possible! No detail gets lost.

Specifications

Nominal voltage
Model 220 – 240 V / 50 – 60 Hz: 220 – 240 V
Model 100 – 120 V / 50 - 60 Hz: 100 – 120 V

Power consumption
OFF (standby):  <0.5 W
ON: 50 W

Main-Out
Output voltage

balanced: 4 Vrms
unbalanced: 2 Vrms

Peak Output Current: 0.2 A

Output impedance

balanced 10
unbalanced 10

Frequency response (depending on data format): DC-100 kHz
Distortion (THD+N): <0.002 %
Noise floor: 140 dB
Volume range: 0...-80 dB
Balance range: <- 9...0...9 -> dB

Digital-Out
Output voltage

SPDIF: 500 mV p-p
AES/EBU: 5 V p-p

Output impedance

SPDIF: 75
AES/EBU: 110

Digital-In
Sensitivity 0.3 - 5 V p-p

Input impedance

SPDIF: 75
AES/EBU: 110

PLL – range: +/- 100 ppm

USB Input
Sensitivity: 0.5 - 3.6 V p-p

PCM

Bit depth 16 - 24 Bit
Frequency 32 - 96 kHz
Audio Class 2.0

Nativ for OSX, Driver for Windows required

LAN Input (optional)
Sensitivity: 0.4 - 3.3 V p-p

PCM

Bit depth: 16 - 24 Bit
Frequency: 32 - 192 kHz


DSD

Bit depth: 1 Bit
Frequency: 2.82-5.64 MHz

File Formats FLAC (Free Losless Audio Codec)

WAV (Waveform Audio File Format)
MP3 (Mpeg Audio Layer 3)
ALAC (Apple Lossless Audio Codec)
AAC (Advanced Audio Coding)
AIFF (Audio Interchange File Format)
DSF and DFF (DSD stream file)

LINK-System: +12 V
