Heritage D 100 DAC


 Released at the beginning of 2015, the Heritage D100 DAC has three digital inputs plus Bluetooth 4.

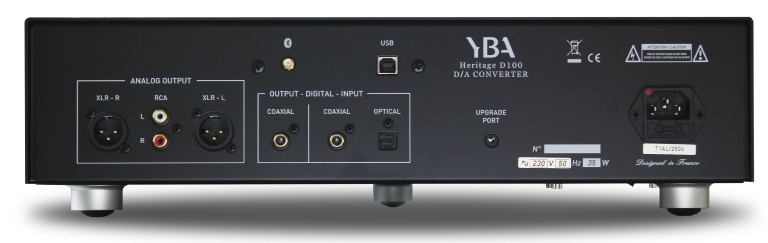

It has a coax digital output together with both RCA and XLR analog output options.

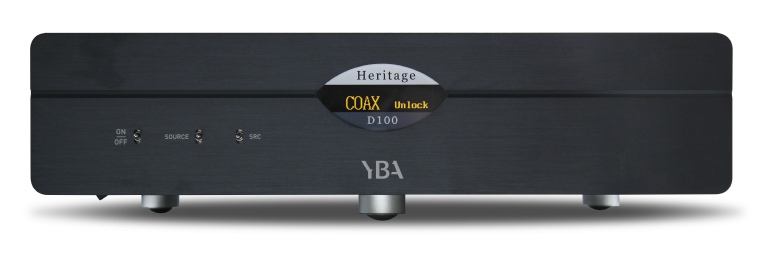

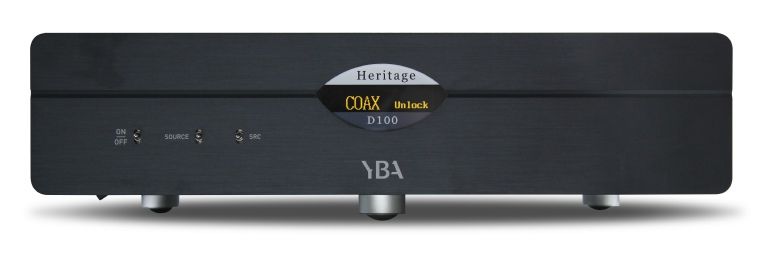

The D100 is the first YBA product to feature DSD. Irrespective of the source (USB, Coax, Optical or Bluetooth) the DAC will detect DSD encryption and the display panel will light with a DSD indication.
Windows users need to download a driver.


D/A Converter: Texas Instruments PCM1795

Digital input word length: 16, 24 or 32 bits

Digital input frequency: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz

Upsampling: Fixed 32 bits / 192 kHz

Digital care: Ultra low jitter design. High precision reclocking

SNR: -135 dB (XLR) / -130 dB (RCA)

THD+N (20Hz - 20 kHz):  <0.0006%

Frequency response: 20Hz - 20kHz

Inputs: USB, Coaxial, BT, Optical

Bluetooth input: BT V4.0

USB input: PCM 24 bit / 384 kHz; DSD 64 & DSD 128

Output level (RCA): Variable, up to 2V

Output level (XLR): Variable, up to 4V (2V per phase)

Power supply: Linear power supply with high performance R-Core transformer

Construction: Single frame aluminium

Finish: Brushed aluminium or black

Dimensions: 430 x 372 x 118 mm

Weight: 5 Kg
