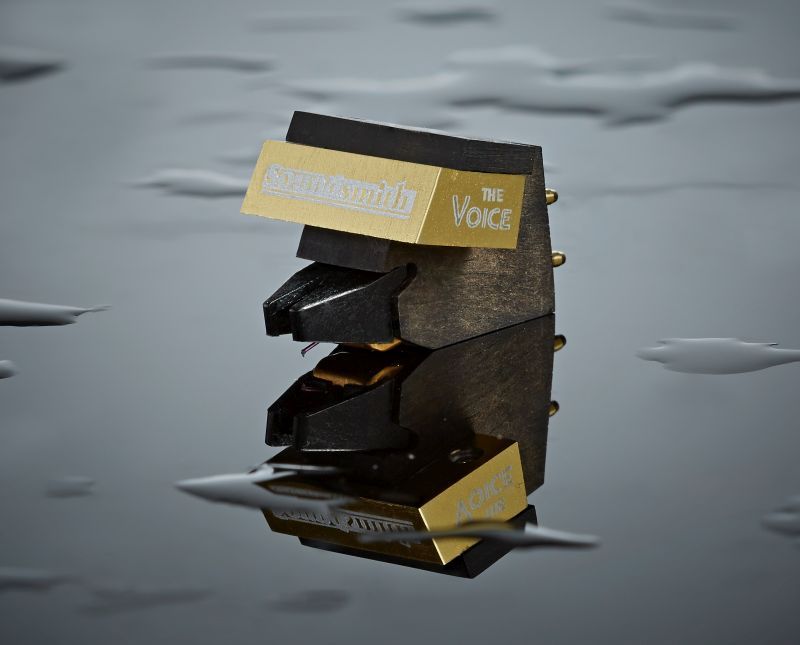

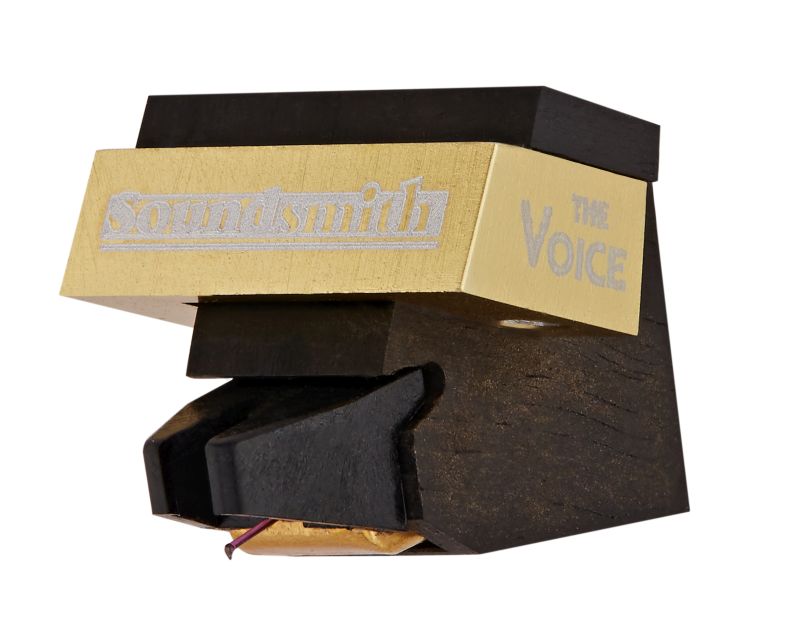

Since its introduction in 2009, The Voice has won numerous "product-of-the-year" awards and is - in Peter Ledermann's words - "probably the best HO cartridge in production today". Soundsmith's design goal was to produce the lowest moving mass high outuput design possible using novel and advanced technology. Featuring a single crystal Ruby Cantilever and our Optimized Contour Line Contact Stylus, we developed a specialized metallurgy for the low mass moving iron system. A cartridge that disappears. After all, if it sounds like a "record"...it's wrong. The cartridge should bring you directly to the performance; not stand between you and the music.
This is Soundsmith's new medium output design. All other technical specifications are identical to the THE VOICE.
Stylus: Contact Line Nude, 0.100 mm SQ selected for low noise.
Radius of curvature: OCL (Optimized Contour Contact Line)
Recommended Tracking force:
10 mN / 1.0 gm (high)
13 mN / 1.3 gm (medium)
Effective tip mass: 0.30 mg
28 μm/mN (high)
22 μm/mN (medium)
Frequency response: 20 - 20.000 Hz +/- 1.0 dB
Channel separation (stereo only):
1000 Hz>30 dB
50 - 15.000>25 dB
<0.5 dB (Stereo)
<1.0 dB (Mono)
Output voltage THE VOICE: 2.12 mV
Output voltage SOTTO VOCE: 1.1 mV
Cartridge weight: 6.8 Grams
Loading THE VOICE: >= 47 kΩ
Loading SOTTO VOCE: >= 1.5 kΩ
