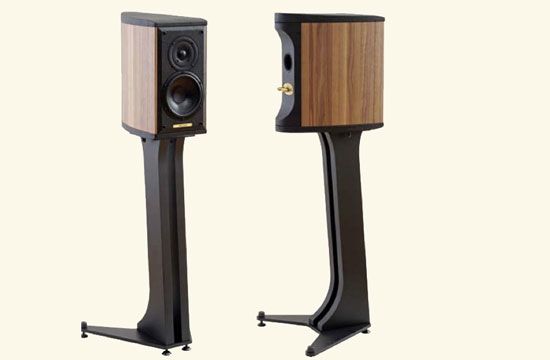

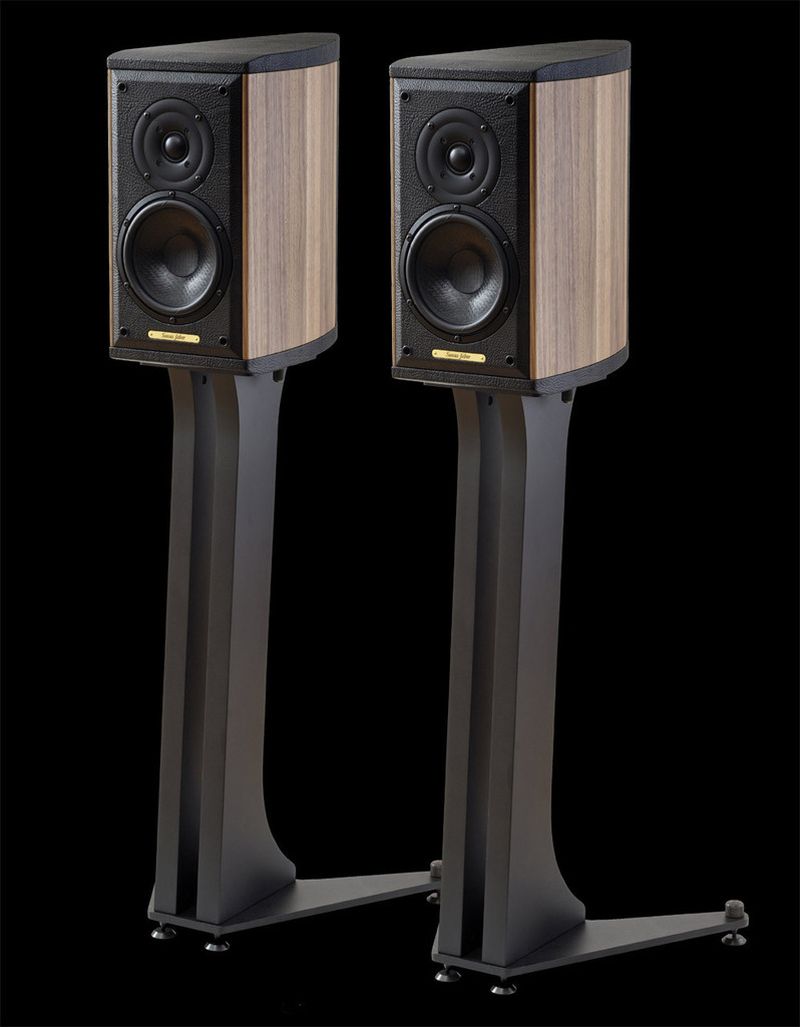

Liuto Monitor


Technical specifications

System: 2 way floorstanding vented box loudspeaker.

Cabinet: Lute shape design ensures excellent stiffness avoiding resonances and standing waves.

Tweeter: 25mm high definition precoated fabric dome driver with wide soft polymer surround and rear chamber. Custom design.

Midrange: 150 mm cone driver. A free compression basket design and a thermo-mouldered polypropylene textile cone, also known as "curv", ensures an excellent dynamic performance. Custom design.

Woofer: 220 mm lightweight Aluminium/ Magnesium alloy cone driver. Ultra dynamic performance an linearity. Special coaxial anti-compressor is used, designed to remove cavity resonances and distortions.

Cross-over: Non-resonant second order design, optimized phase characteristics for optimal space/time performance, cross-over point 3.500 Hz.

Frequency response: 55 Hz - 25000 Hz, tuning port included.

Sensitivity: 86 db SPL (2.83 V/1m).

Nominal impedance: 8 ohm.

Power handling: 30 W - 150 W without clipping.

Finish: Combination of black leather and natural walnut.

Dimensions: 365 x 185 x 336 mm (HxWxD)

Weight: 16 kg per pair-net weight
19.5 kg per pair-shipping weight.


Dimensions: 667 x 395 x 300 mm (HxWxD)

Weight: 15 kg per pair - net weight.

               19 kg per pair - shipping weight

Total dimension: 1023 x 395 x 336 mm (HxWxD).
