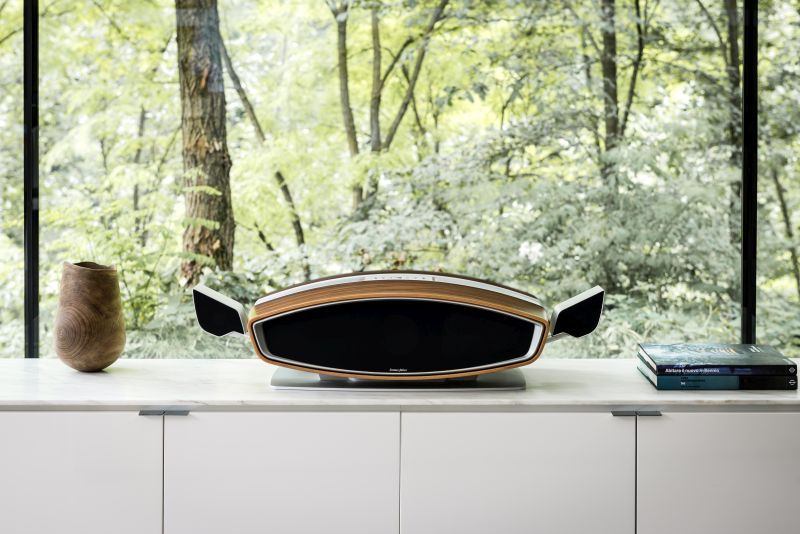

SF16




Sf16 is a tribute to this classic speaker and subwoofer combination which adds the latest in driver technology, a powerful 1400 watt amplification system complete with wireless connectivity and an elegant new look nothing short of luxurious.

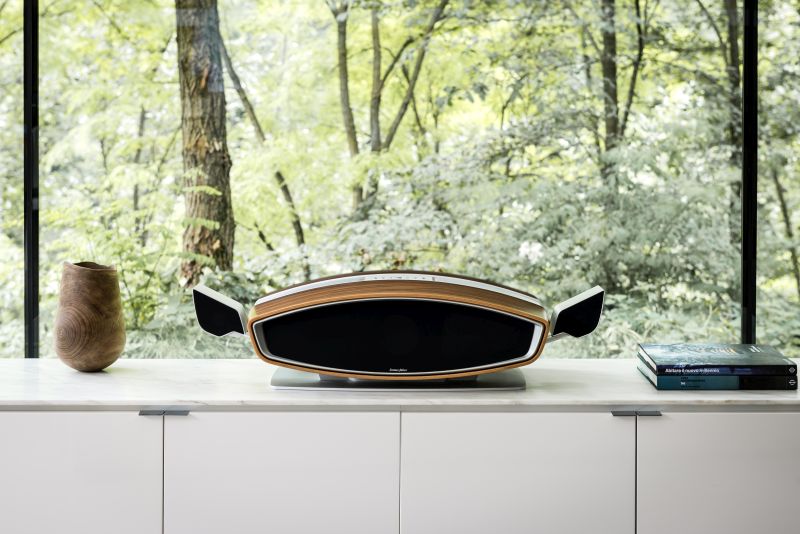

Re-imagined as a complete all-in-one hi-fi system, the Sf16 has the unique ability to adjust driver location based on optimal dispersion at a given output level. Whether relaxing alone or hosting a loud party, Sf16 can use its motorized arms to transform itself to meet your needs.


MOTOR SYSTEM

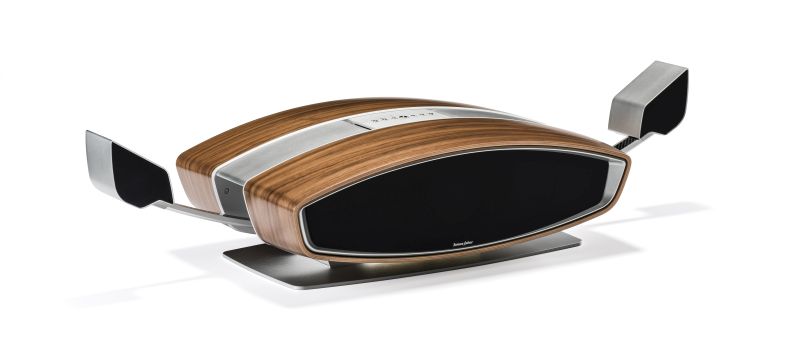

The Sf16 movement is done by two strong Aluminum / Carbon fiber arms activated by brushless motors digitally controlled.

DEEP BASS
To optimize low frequency extension, we incorporated two custom designed ultra long throw drivers featuring a rigid but extremely light Aluminum/Magnesium alloy cone.

MID-HI FREQUENCIES
Accuracy in music reproduction is acheived through the use of 2” midrange drivers featuring powerful neodynium magnets and Aluminum/Magnesium allow drivers. The tweeter is a ½” modified silk dome design for maximum clarity and musicality.

SONUS FABER PATENTS
"Zero Vibration Technology” each woofer has an opposing woofer mounted at 180 degrees in a push-push configuration for cancellation of internal vibration. “Sound Field Shaper” rear-facing midrange and tweeters are designed to enhance soundstage depth, width and immersion.
“Stealth Reflex System” Custom port and bass reflex designs are implemented to enhance low-frequency extension while reducing distortion.

TECHNICAL SPECIFICATION

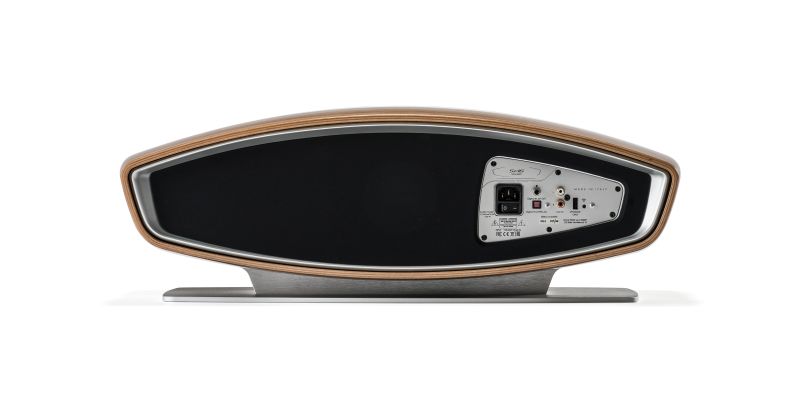

Audio Inputs
- 1x AUX (analog RCA)
- 1x Digital S/pdif coaxial
- 1x Digital Toslink optical
- 1x Play-Fi Wireless standards 802.11a/b/g/n protocol

File Formats
MP3, M4A, AAC, FLAC, WAV

File Quality
Lossless file reproduction up to 16-bit/44.1kHz (CD Quality) and fullcompatibility with all high-resolution music up to 24bit/192k.Plays all format bitrates [kbps]. DTS Play-Fi transmits hi-resolution filesbut it does a down-sample in order to distribute them throughout yourhome.

Supported Internet music services
Deezer, KKbox,, Rhapsody, Songza, Tidal, Spotify®, Amazon music,IHearthradio, Pandora, Sirius XM, internet radios.
Supported media server DLNA

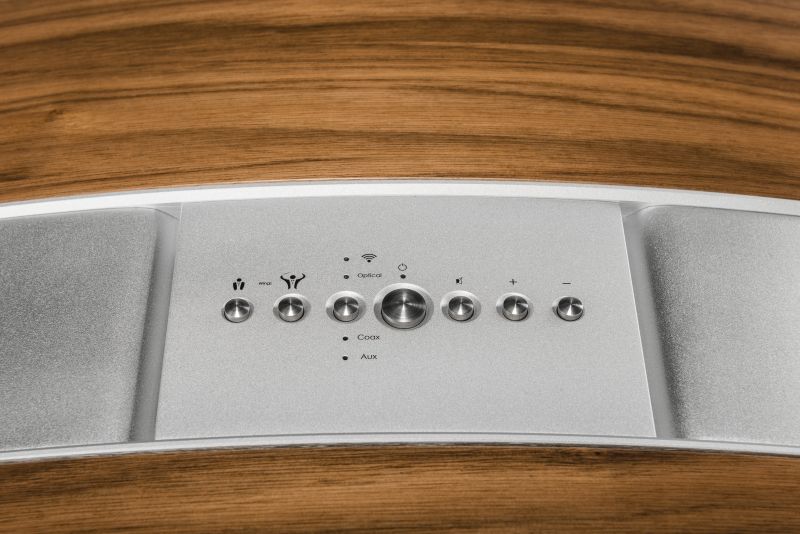

Connectivity Remote control
Wi-Fi (802.11b/g)

Loudspeaker System
3 ways, Sound Field Shaper technology, Bipole/Dipole radiation for enhanced stereo width

Drivers
2 5” long throw subwoofers, push-push structure, “zero vibration technology”2 satellite Front/Back with 4 ceramic 2” Midrange + 4 1/2’’ tweeter point source silk dome

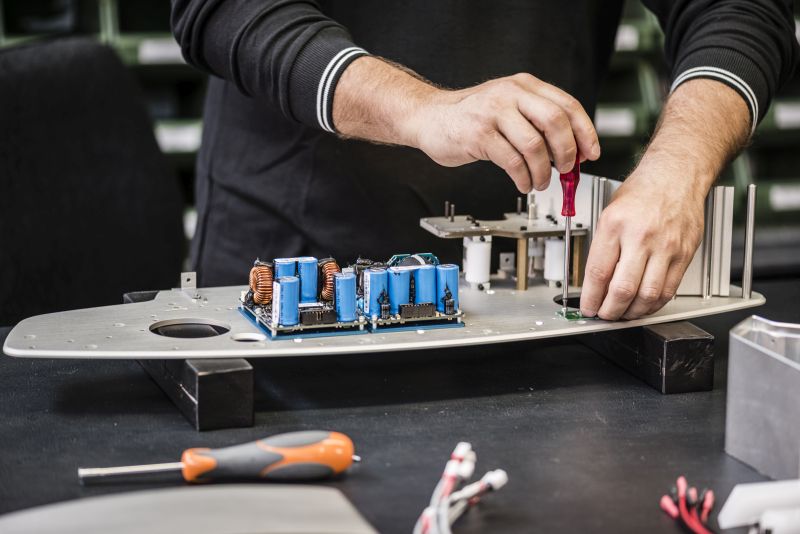

Amplification
1400 W total, 4 Ω

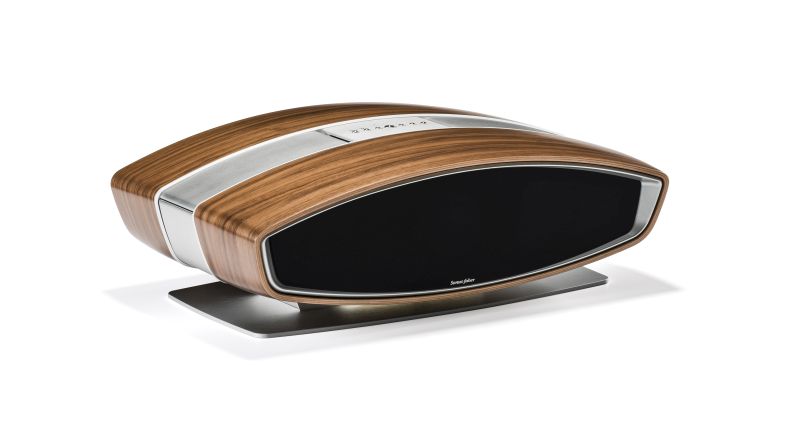

Dimensions (HxWxD)
230 x 640 x 415 mm (closed)
262 x 1080 x 415 mm (open)

Weight
25 Kg

A.C. Mains voltage
100 - 240 V, 50/60 Hz

Power consumption
Typical use 340W
Stand-by: <0,5W
