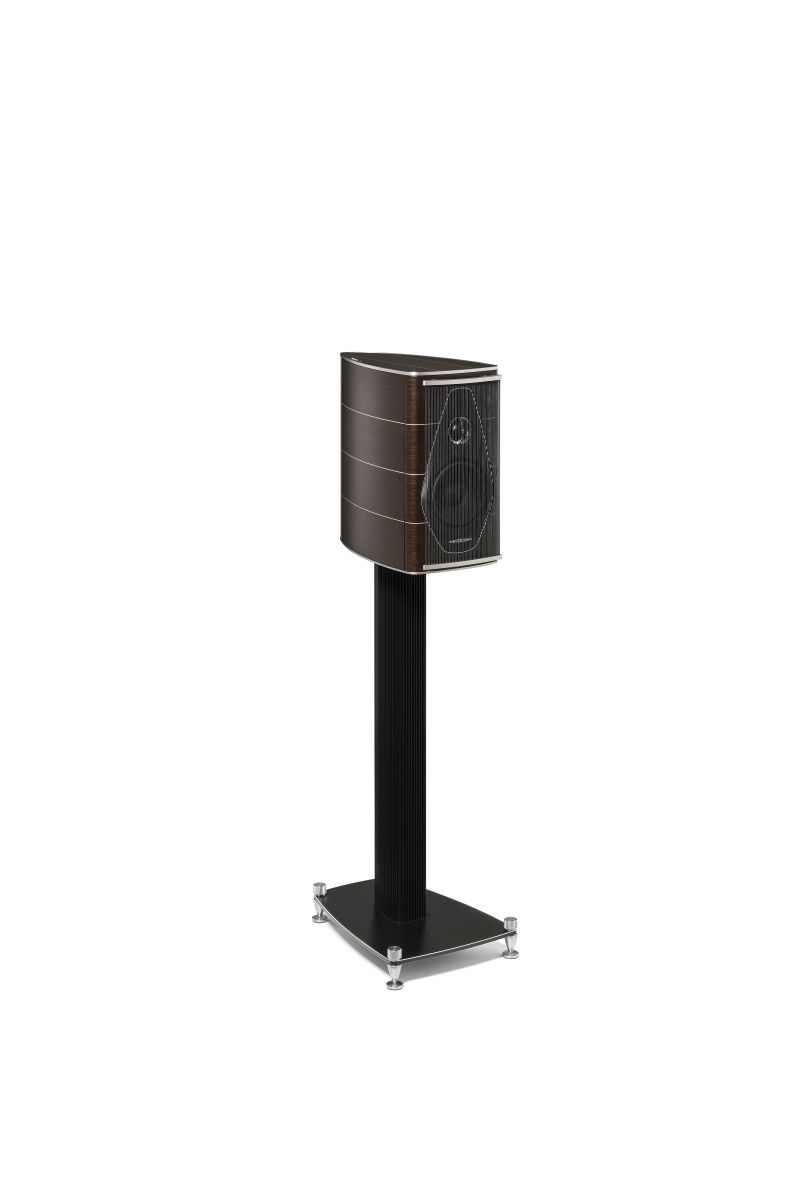

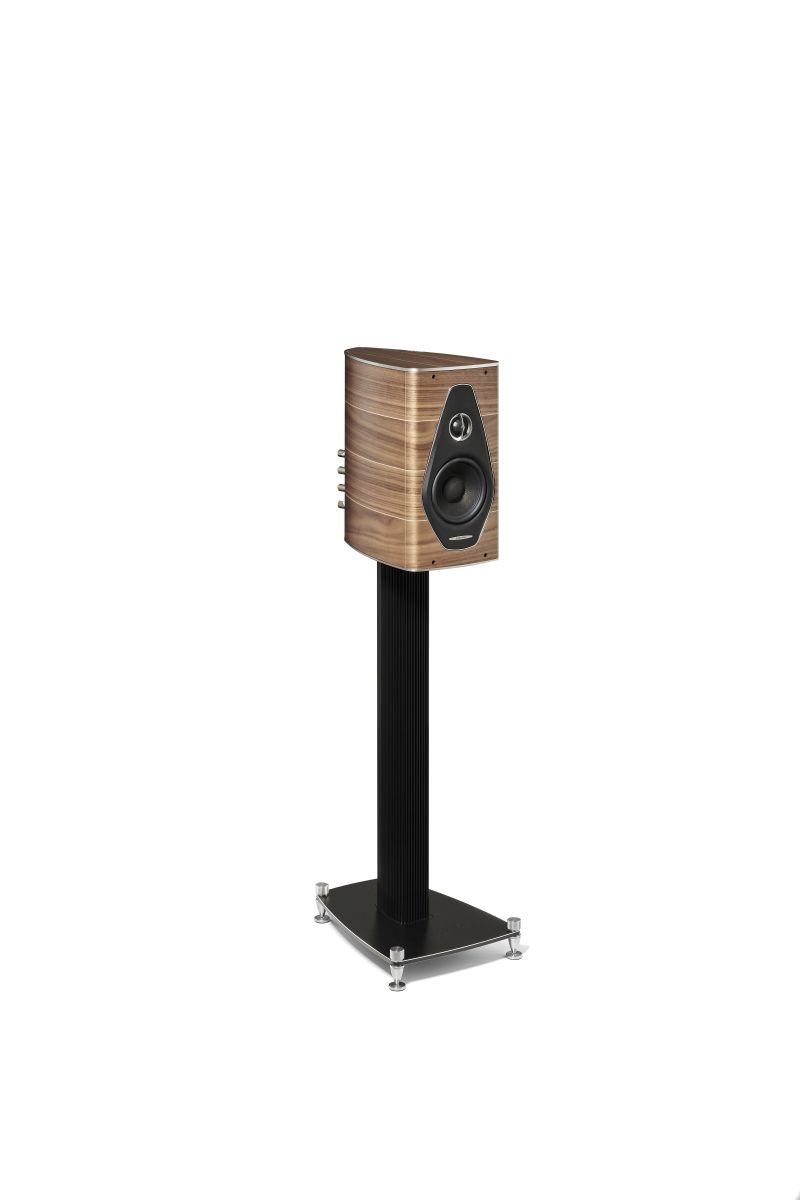

Olympica Nova I




 The lack of flat and parallel walls improves enclosure performance and maintains the typical asymmetrical Lute shape of first generation Olympica.
The asymmetrical shape of the cabinet is an original design concept that allows versatile positioning of the speakers to tune the bass response in any room.
Inspired by nature, the lines follow the flow of a circular spiral motion, achieving a more organic cabinet structure.
No longer just a functional element added to handle airflow, the reflex duct is now fully integrated into the cabinet, further improving the speed and transparency of sound.

Technical specifications

SYSTEM
2 way, full para-aperiodic vented box “Stealth Ultraflex”, stand mount loudspeaker system.

LOUDSPEAKERS
Tw: H28 XTR3, Neodymium “cup design” motor system with DAD™, Ø 28 mm
Mw: MW15 XTR2-04, CCAW wire on a “eddy current free” voice coil, Ø 150 mm

CROSSOVER
2.500 Hz

FREQUENCY RESPONSE
45 Hz – 35.000 Hz

SENSITIVITY
87 dB SPL (2.83V/1 m)

NOMINAL IMPEDANCE
4 ohm

SUGGESTED AMPLIFIER POWER OUTPUT
35 W – 250 W, without clipping

DIMENSIONS (HXWXD)
355 (1078 stand included) x 199,5 (282 stand included) x 395 mm
14 (42.4 stand included) x 7.8 (11.1 stand included) x 15.5 in

WEIGHT
10,5 kg - net weight (17,1 Kg stand included)
23.1 - net weight (37.6 lb stand included)

AVAILABLE FINISHES

Walnut, Wenge
