Musica is the perfect expression of the Sonus faber philosophy, embodying simplicity while representing the quest for the finest sound reproduction possible, above and beyond that which fashion dictates.This pure and simple design, while state-of-the-art in terms of technology, contrasts with the sophisticated technical considerations applied in its conception and construction, the interior accomodates the ample power supply and ultra high-speed circuitry.
In creating this precision instrument, Sonus faber did not regard absolute power as a design objective. Instead, we concentrated on musical quality,for the kind of reproduction which involves the listener's heart. Musica has been designed not just by us but for us. And for music lovers everywhere.

Technical specifications

Power Output: 100 watts x 2, 4 ohms / 50 watts x 2, 8 ohms

Amplifier Features: Left / Right Channel symmetrical PCB design

Surface Mounted Device (SMD) technology for shortest signal
path 28 dB total gain
Dual JFET differential input with double bootstrapping
Error corrected MOSFET output stage

Low impedance dynamic drive capability
DC short circuit and thermal protection circuit

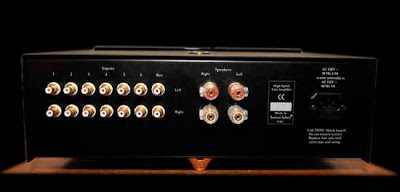

Six line inputs
Buffered record output
Custom made plastic conductive volume control
No tone controls for signal purity
Mechanical input selector with switched ground line
WBT gold-plated speaker terminals

Power Supply Feautures: Torodial type transformer
Custom twin 1500 mF low multiplication factor main capacitors
Independent power supply for input gain stage and output stage
Ultra high speed schottky diode rectifier in double bridge
configuration for input and output stage.Discrete voltage regulators for input gain stage

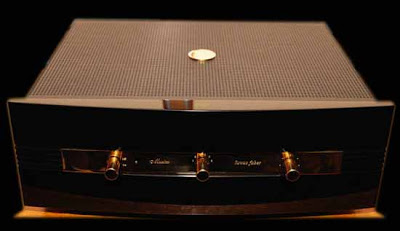

Finish: Front panel in solid black lacquer finish.

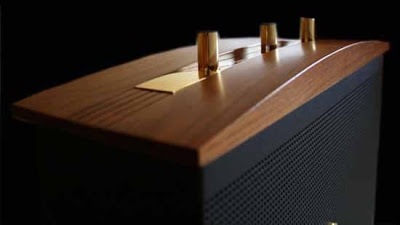

Controls and spikes in gold plated copper

Dimensions: 17 x 15 x 6 inches (WDH);
432 x 381 x 153 mm (WDH)

Weight: 35.2 lbs / 16kg
