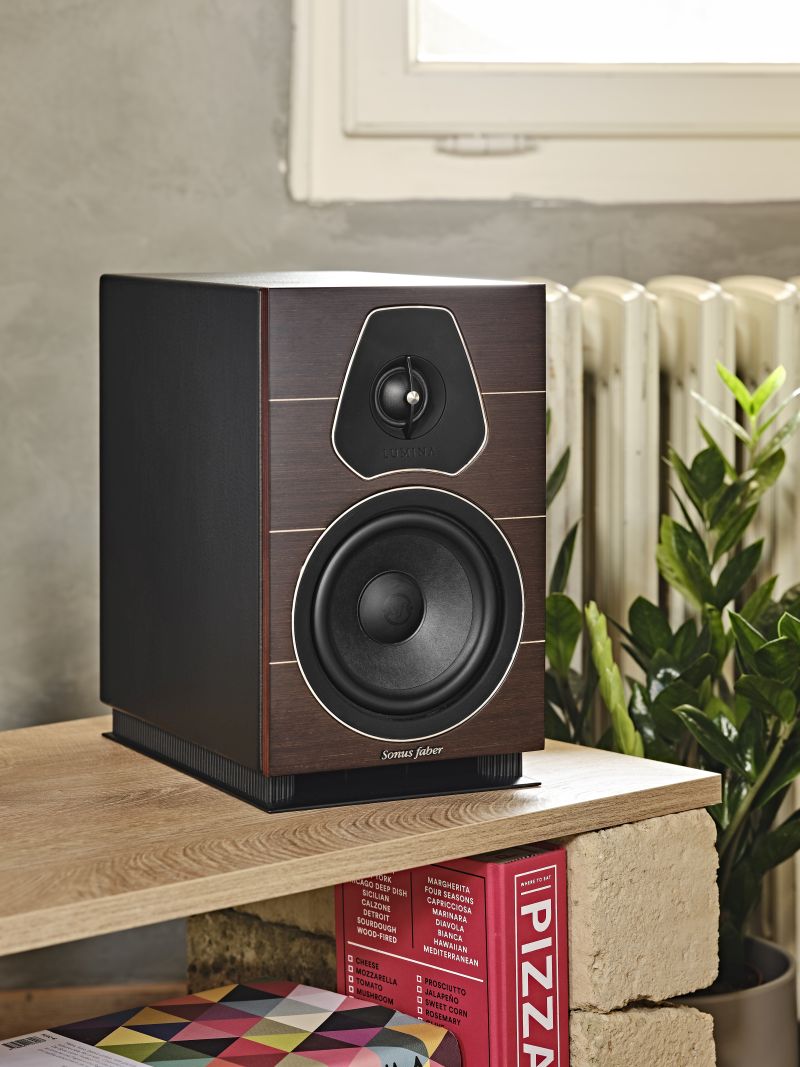

Lumina I




Features

TWEETER
The iconic D.A.D (Damped Apex DomeTM) tweeter, the same used in the Sonetto series, features a Kurtmueller hand coated soft silk diaphragm of 29 mm. The chrome rings around the drivers highlight shapes and proportions and give brightness to the front baffle while outilining the Voice of Sonus faber.

THE MULTILAYER WOOD FRONT BAFFLE

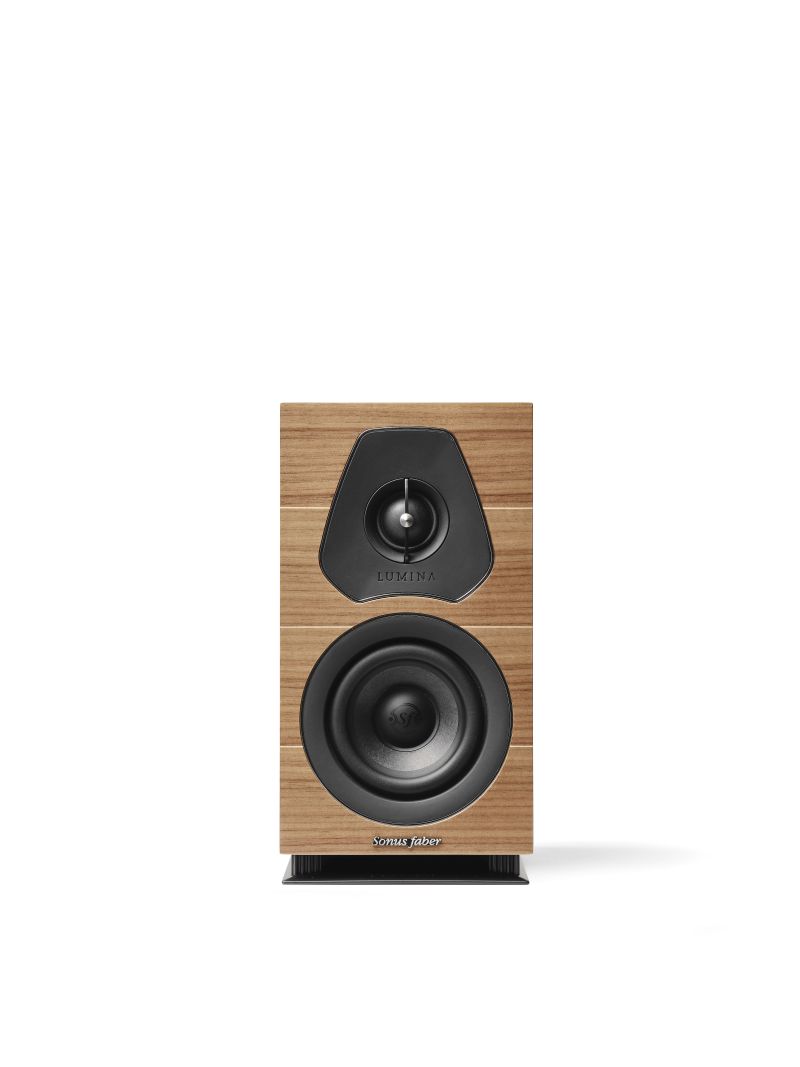

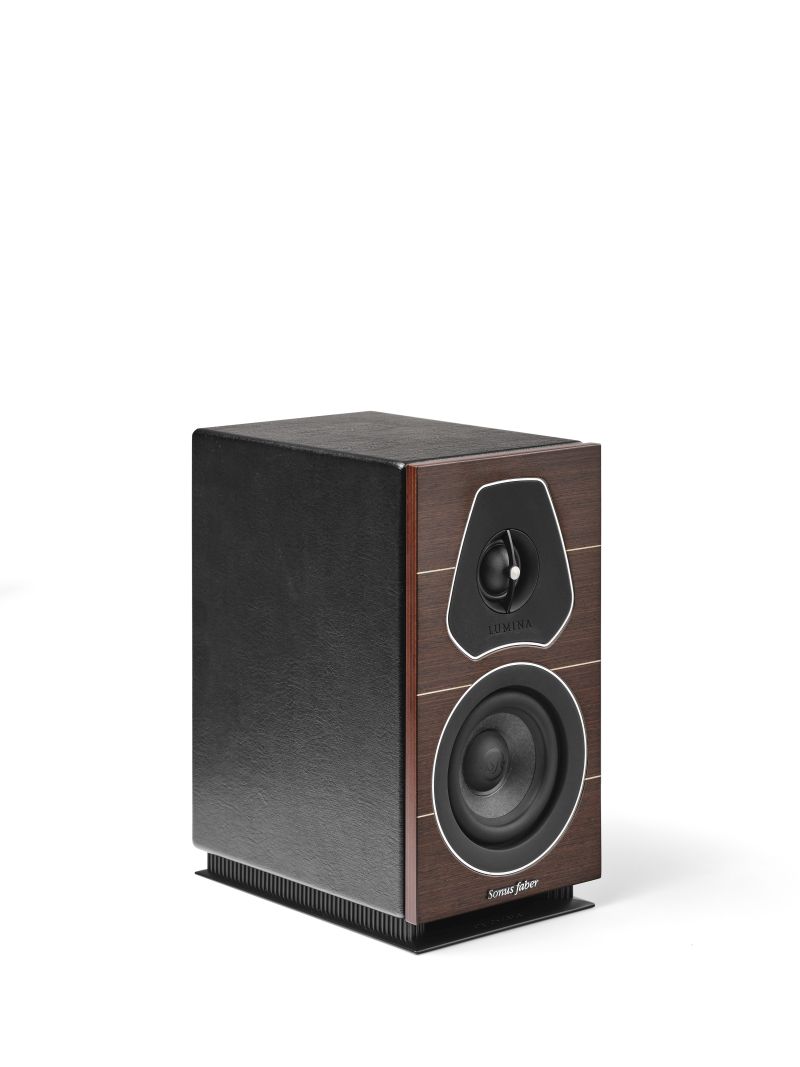

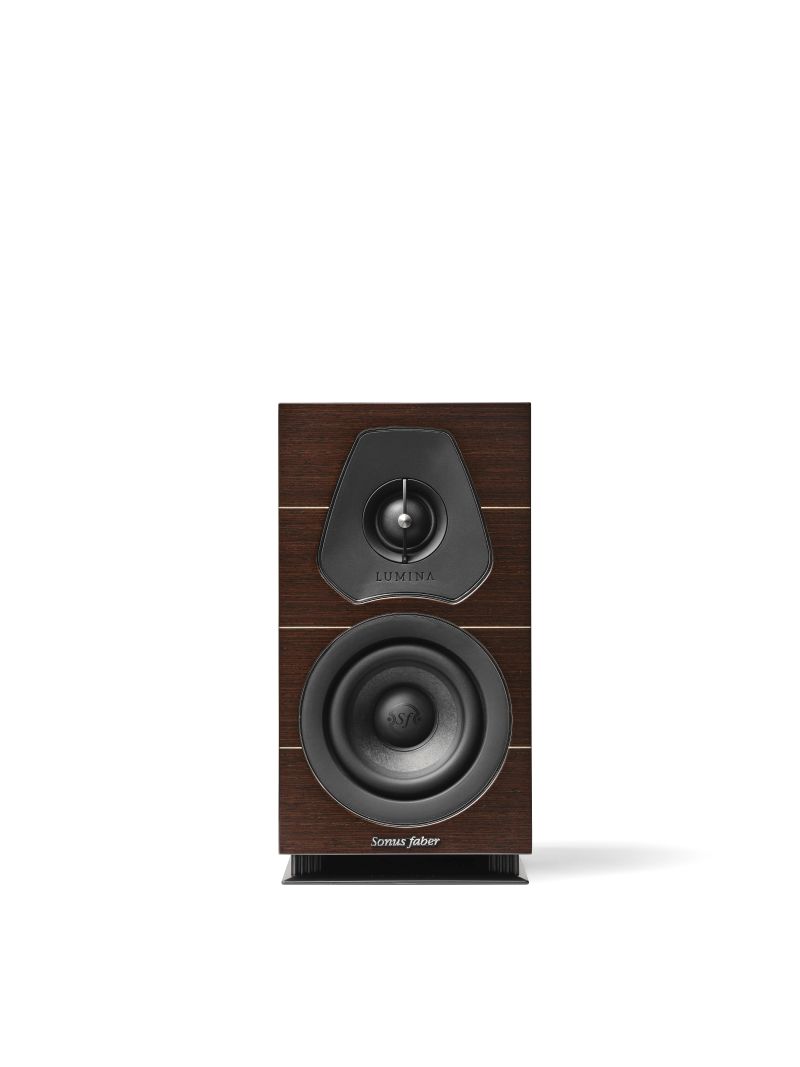

Among the materials selected for this line what stands out is the Lumina's multilayer wood of the front baffle and the real wood venner, available in iconic premium finishes, including walnut and wenge, both in matte finish with maple inlays, with a third option available in piano black. All other surfaces of the cabinet are hand covered in our iconic black leather.

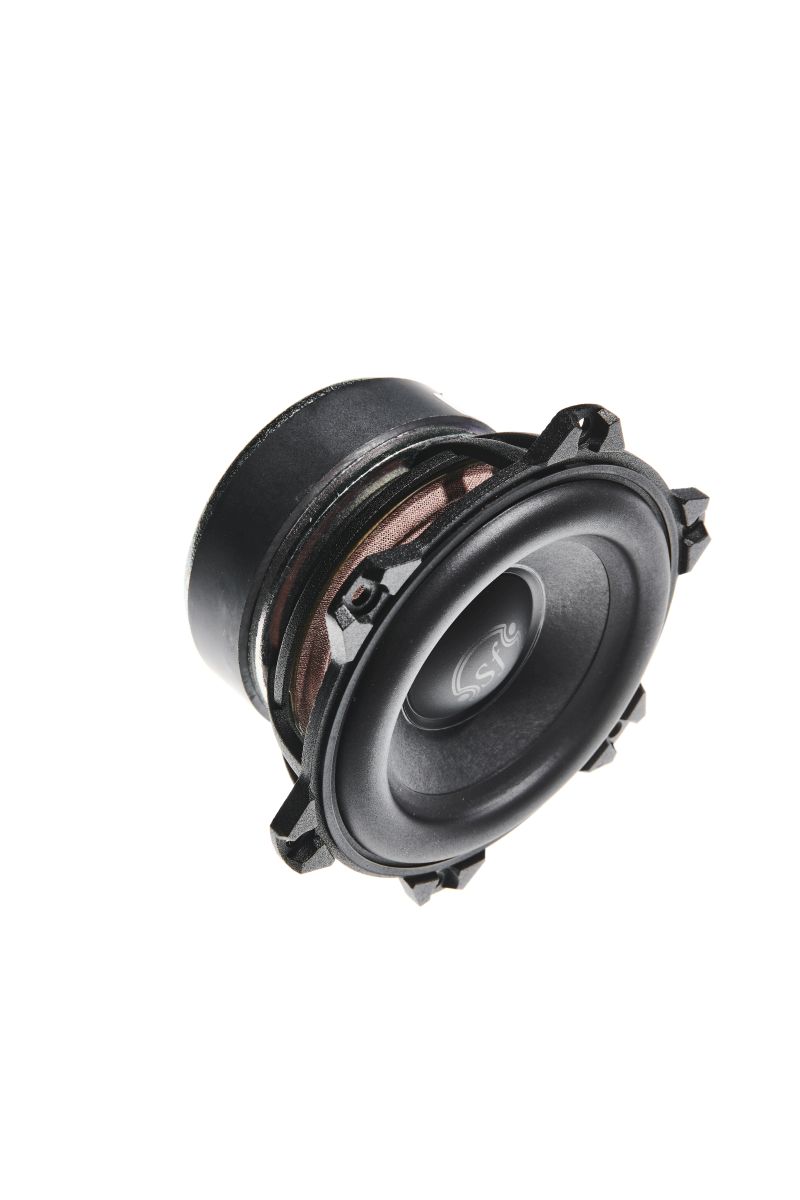

MIDWOOFER
The brand-new 4'' midwoofer, developed for this collection, is equipped with the custom-made basket and the diaphragm based on cellulose pulp blended with other natural fibers.

REFLEX PORT
The reflex port gives additional versatility for the model's range: on the bookshelf and center channel speakers it's placed on the frontside. Thanks to this solution, Lumina I speaker is significantly less sensitive to its placement, allowing sound excellence even when placed close to a backwall. It can be placed whenever you want enjoying a great performance listening experience.

TERMINALS
Lumina's are provided with two pairs of nickel-plated terminals, allowing for an upgrade experience provided by bi-wiring and bi-amping.

CROSSOVER
Lumina's crossover are featuring some specifically designed Sonus faber branded hi-quality capacitors.


Technical specifications

SYSTEM
2-way shelf loudspeaker system.
Vented box design

LOUDSPEAKERS
Tw: Ø 29 mm high definition DAD™ driver
Mw: Ø 120 mm paper cone driver

CROSSOVER
Optimized amplitude/phase response for optimal space/time performance. Crossover frequency: 2000 Hz.

FREQUENCY RESPONSE
65 Hz - 24.000 Hz

SENSITIVITY
84 dB SPL (2.83V/1m)

NOMINAL IMPEDANCE
4 ohm

SUGGESTED AMPLIFIER POWER OUTPUT
30W – 100W, undistorted signal

DIMENSIONS (HXWXD)
280 x 148 x 213 mm
11 x 5.8 x 8.4 in

WEIGHT
4.4 Kg each
9.7 lb each



AVAILAVLE FINISHES
Black, Wenge, Walnut
