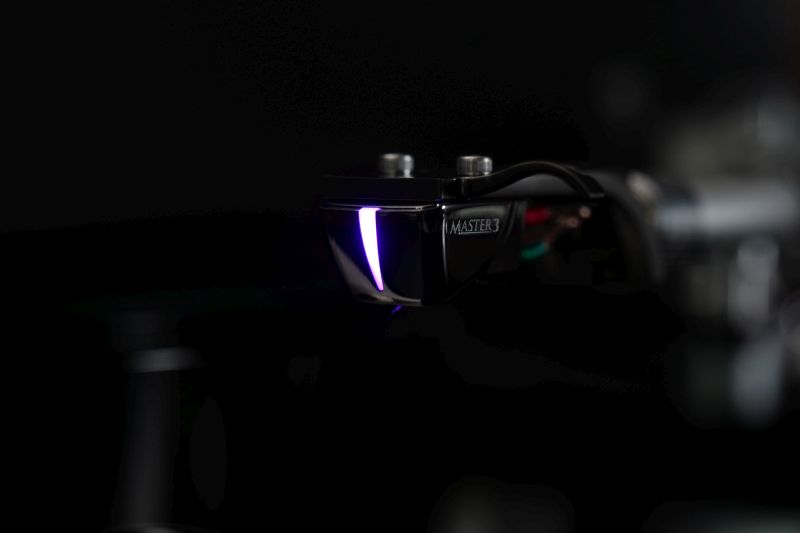

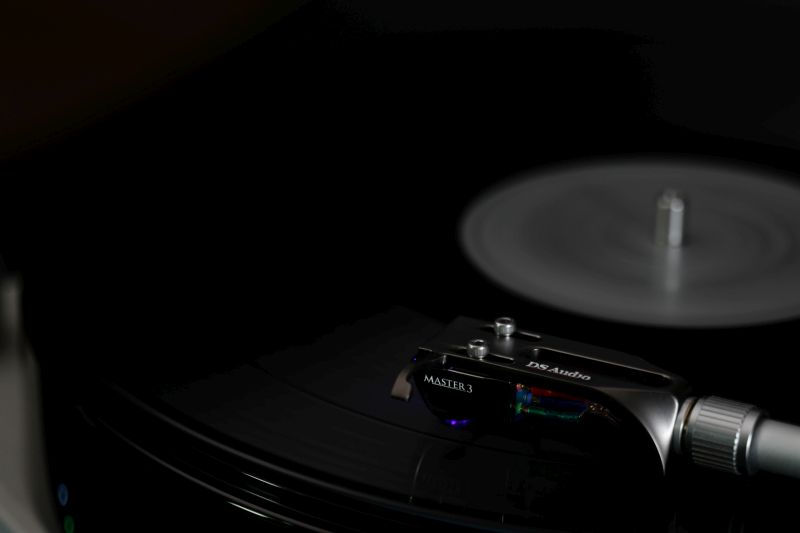

DS Master3 Optical Cartridge
Signal output: Photo-electricConversion
Channel separation: 27db more（1kHz）
Weight: 7.9g
Output signal level: 70mV more
Canti-lever: Square Pillar Diamond
Body material: Ultra duralumin
Cantilever holder material: Stainless
Needle pressure: 2.0g～2.2g(2.1g is recommended)
Stylus: Micro Ridge

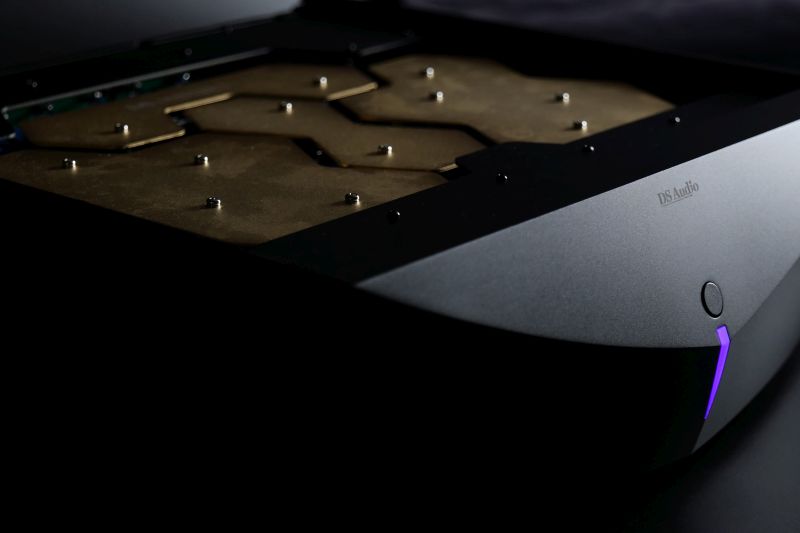

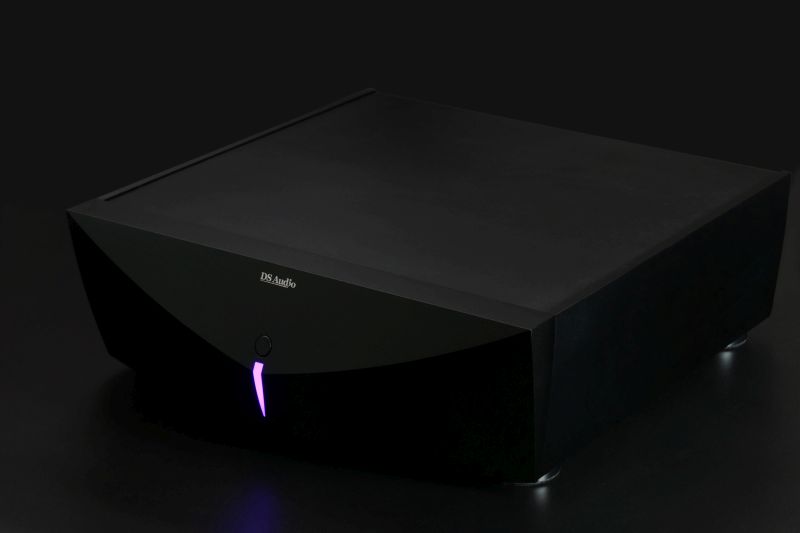

DS Master3 Equalizer for Optical Cartridge
Output voltage: 700mV(1kHz)
Output impedance: RCA 120Ω XLR 120Ω
Pre amp input impedance: More than 10kΩ
Input terminal: RCA terminal
Output terminal: RCA terminal×3, XLR terminal×3
Size: W45.2cm×H15.3cm×D48.4cm
Weight: 23kg
