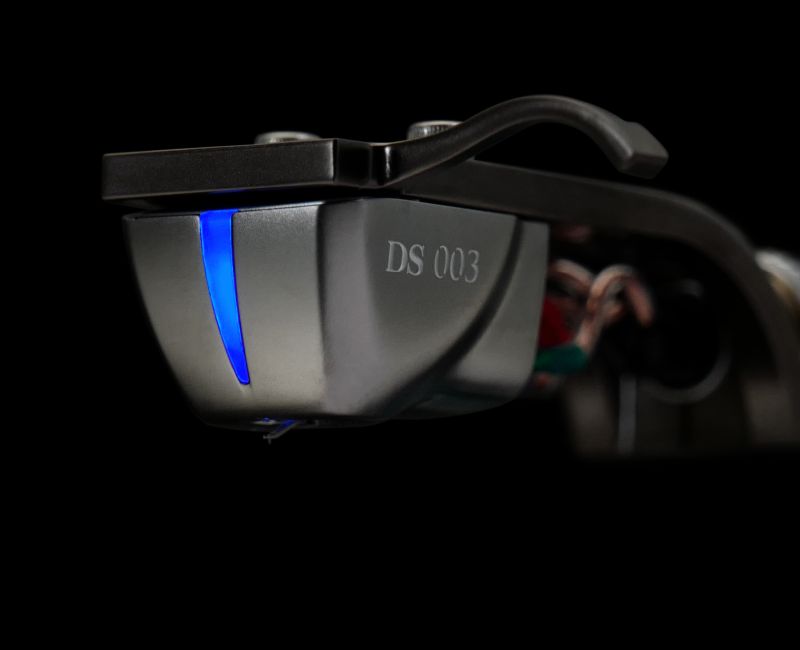

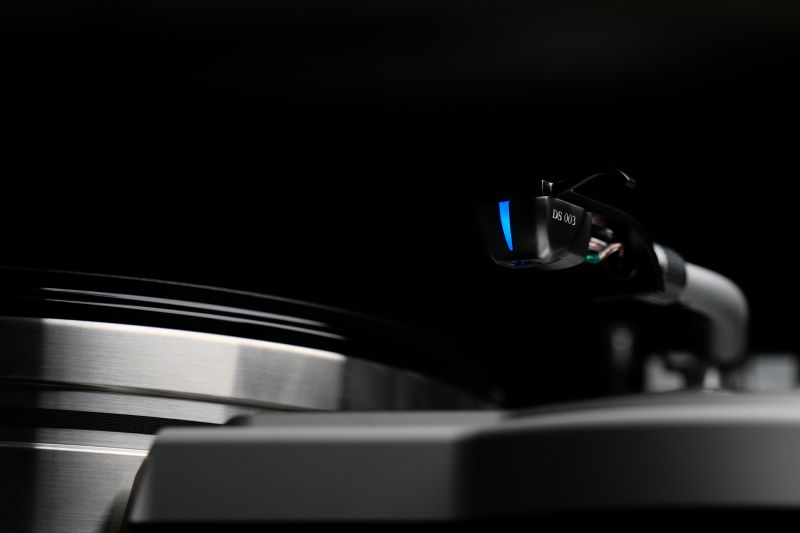

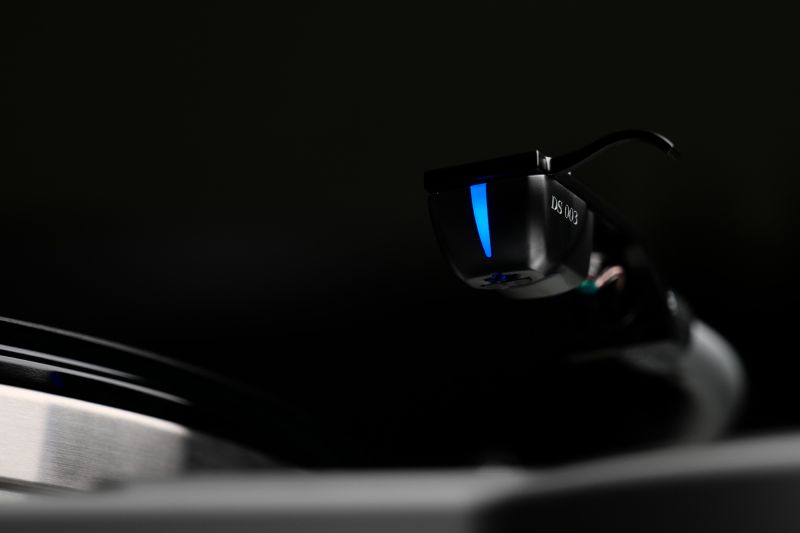

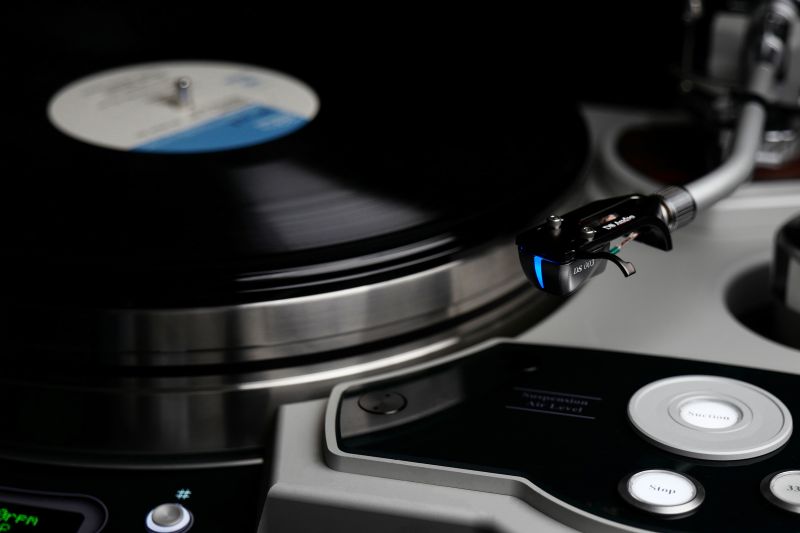

DS 003 Optical Cartridge

Signal output: Photo-electric Conversion

Channel separation: 27dB more（1kHz）

Weight: 7.7g

Output signal level: 70mV (1kHz cartridge output)

Canti-lever: Aluminum

Body material: Aluminum(A5052)

Cantilever holder material: Stainless

Needle pressure: 2.0g~2.2g(2.1g is recommended)

Stylus: Line contact

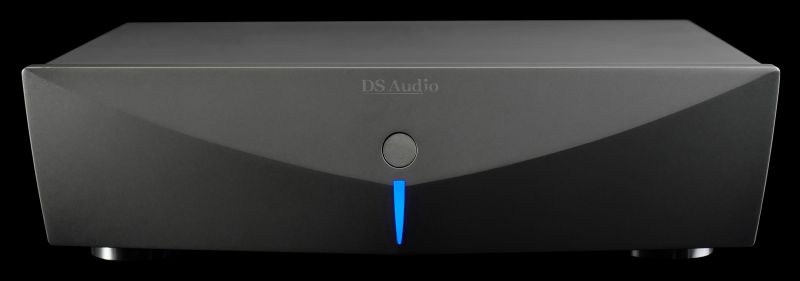

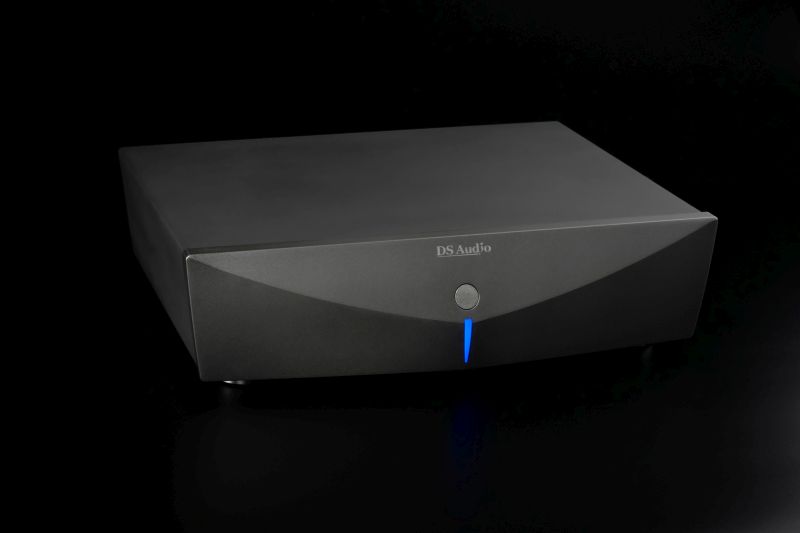

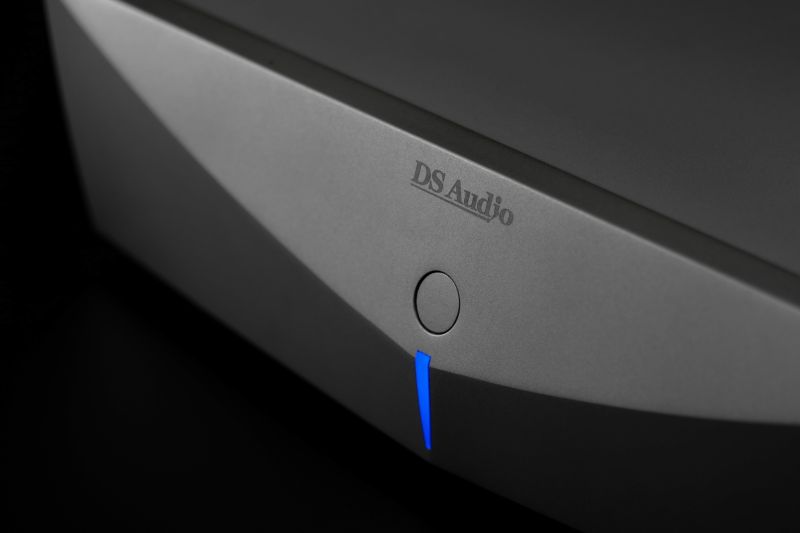

DS 003 Equalizer for Optical Cartridge

Output voltage: 500mV(1kHz Equalizer output)

Output impedance: RCA 120Ω

Pre amp input impedance: More than 10kΩ

Input terminal: RCA terminal

Output terminal: RCA terminal×2

Size: W33cm×H9.2cm×D29.5cm

Weight: 5.0kg
