Passion 430

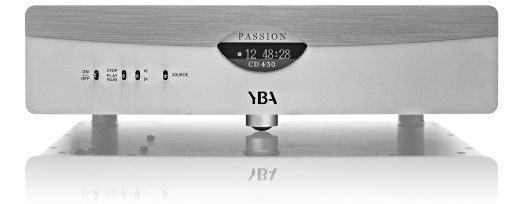

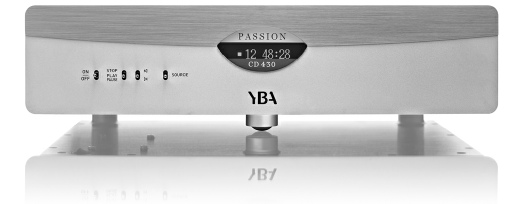

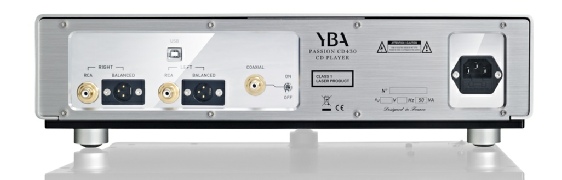

The Passion 430 CD Player was added to the range in November 2013, filling the need for those users who wanted to own a Passion CD player but did not have a requirement for a CD transport. Modelled on the transport, it has a Cirrus Logic DAC on board. It maintains the same switching array on the front panel as the CDT450 but the rear panel presents an entirely different range of options.
With a choice of RCA or Balanced analog outputs, the CD 430 also has a Coaxial output which has its own dedicated on/off switch for use as required.

System: High end Philips CD-PRO llm with patented Blue Diode®

Audio Inputs: CD, USB (USB2.0 High speed, up to 192kHz)

Audio Outputs: 1 RCA, 1 XLR, 1 Digital (coaxial)

Unbalanced output level: 2.3 V

Balanced output level: 4.6 V

SNR (RCA/XLR): 110 dB

Frequency response: 20Hz - 20kHz (-0.5 dB)

THD+N (20Hz - 20kHz): 0.0015% (16bit), 0.0008% (24bit)

Drive compatibility: CD CD-R CD-RW

Power Supply: Linear power supply with high performance UI-Core
transformer 160VA

Dimensions w x d x h: 430 x 388 x 118 mm

Weight: 12.8 Kg
