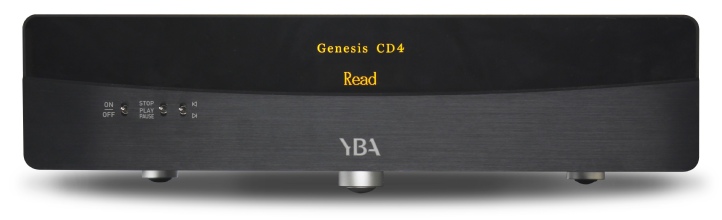

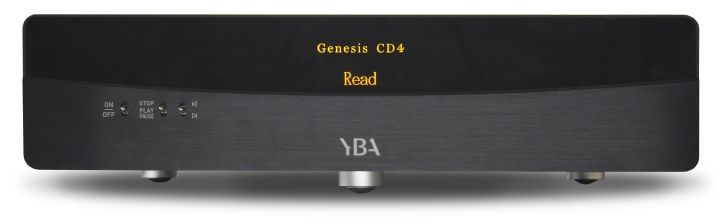

Genesis CD 4




 This newest product in the Genesis range was released in the beginning of 2015.
Styled in a manner similar to the popular Passion series, this player uses a top loading Sanyo HD850 CD transport and incorporates the patented Blue Diode design.
With RCA and balanced outputs this player also features a coaxial digital output. Incorporated into the design is a digital off switch which when used switches off all signal to the digital section allowing this to be a pure analog player.

SPECIFICATION

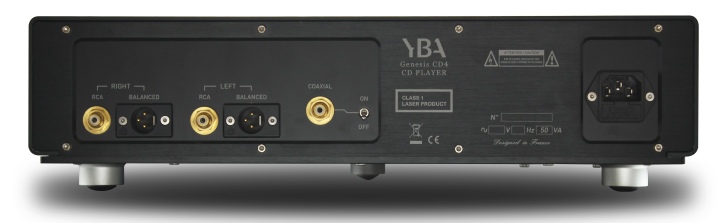

Audio Outputs: 1 RCA, 1 XLR, 1 Digital (coaxial)

DAC: Cirrus Logic CS4398

Unbalanced output level: 2.2 V

Balanced output level: 4.4 V

SNR (RCA/XLR): 110 dB

Frequency response: 20Hz - 20kHz (-0.5 dB)

THD+N (20Hz - 20kHz): 0.0015% (16bit), 0.0008% (24bit)

Drive compatibility: CD CD-R CD-RW

Power Supply: Linear power supply with high performance UI-Core transformer 160VA

Dimensions (w x d x h): 430 mm x 388 mm x 115 mm

Finish: Black brushed aluminium and acrylic

Weight: 11 Kg
