Wadia Intuition 01




Technical specifications

Power
350W + 350W 4 Ohm (1%THD EIAJ)
190W + 190W 8 Ohm (1%THD EIAJ)

Upsampling

1.536 MHz Wadia Delta-SigMaster 32 bit upsampling algorithm

Digital to analog
32bit ESS 9018

Frequency response
3hz - 45khz (-3db) for 1w @ 8 ohm

S/N
113dbA (20-20k hz A weighted)

Jitter
below 1pS RMS

Distortion
< 0,005% (THD, DIM, SMPTE)

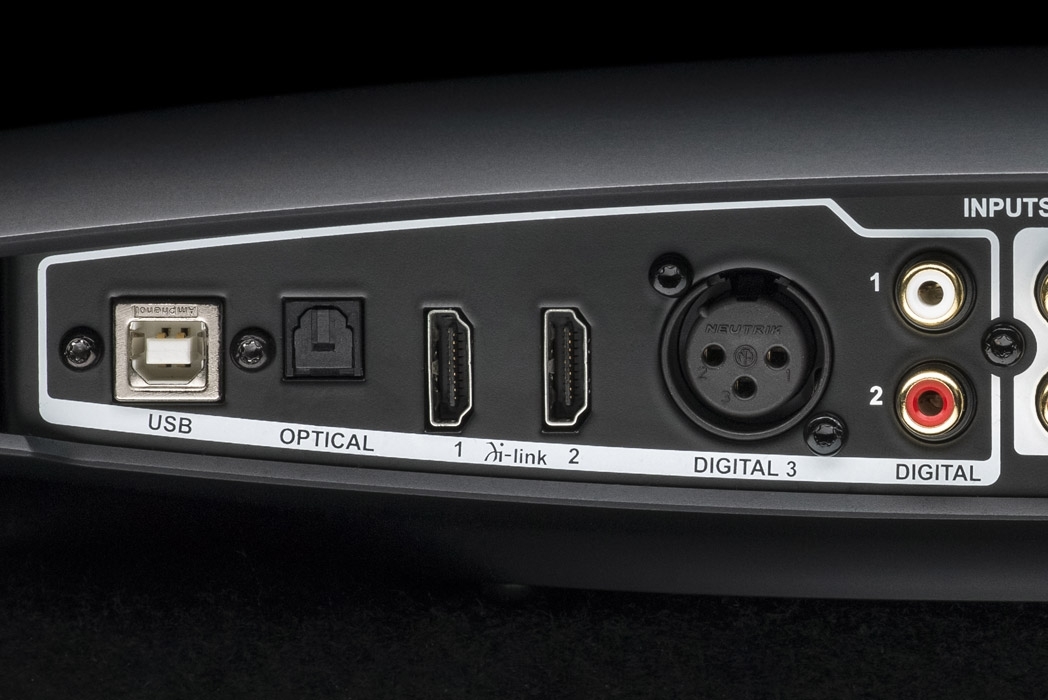

7 Digital Inputs
1xUSB, 1xTOSLINK Optical, 2xWadialink(I2S), 1xAES/EBU,
2x Coaxial S/PDIF (RCA)

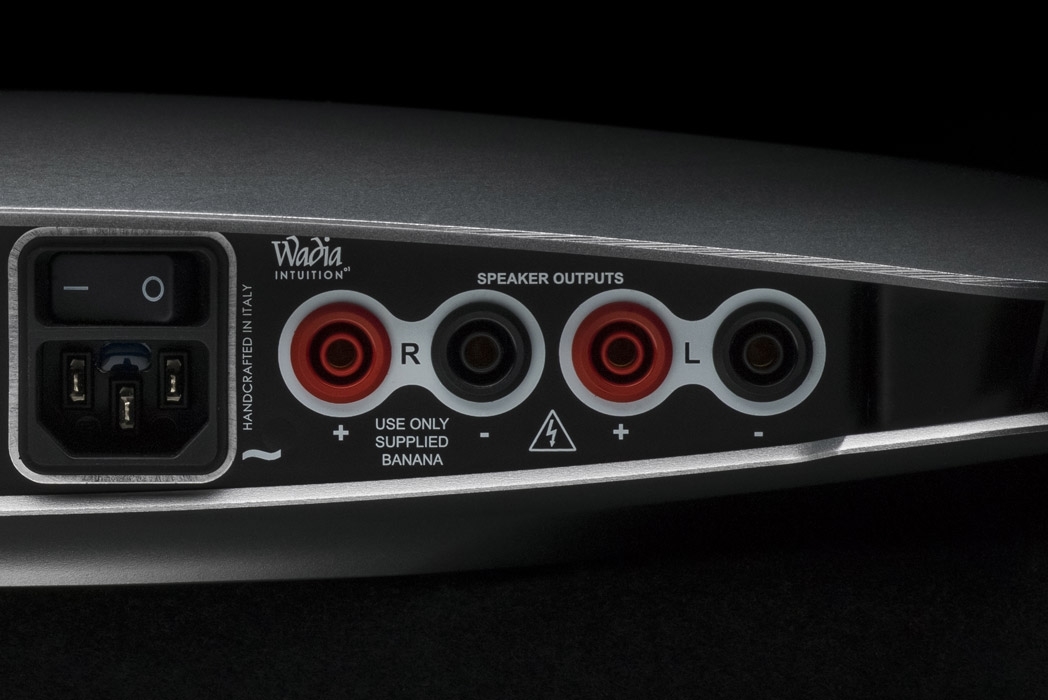

Speaker output
High power output and excellent current delivery: 350 watts per channel via Class D+ technology.

Analog Inputs
2x Analog (RCA)

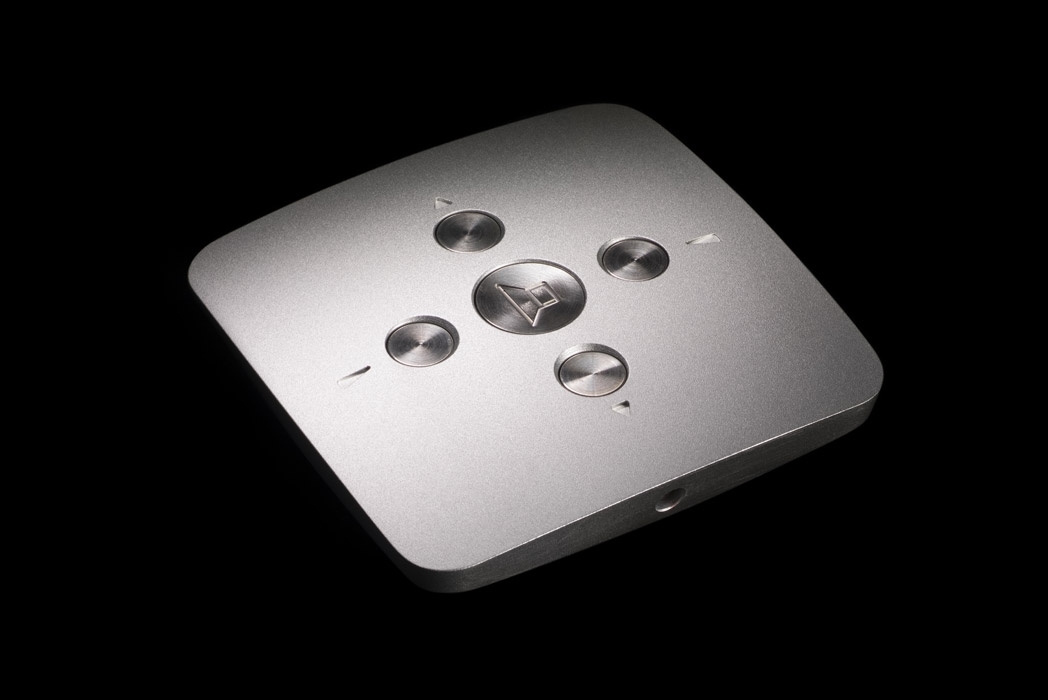

Remote control
Full featured aluminum IR remote control. It provides all of your input and volume control.

Available finishes

Black, Silver

Dimensions
380 mm X 380 mm X 60 mm (15" X 15" X 2 3/8")

Weight
6 Kg (13.2 lbs)
